NXL 14-A 2x6" 2-Way Active Compact Loudspeaker 2100W Black

« return to previous page

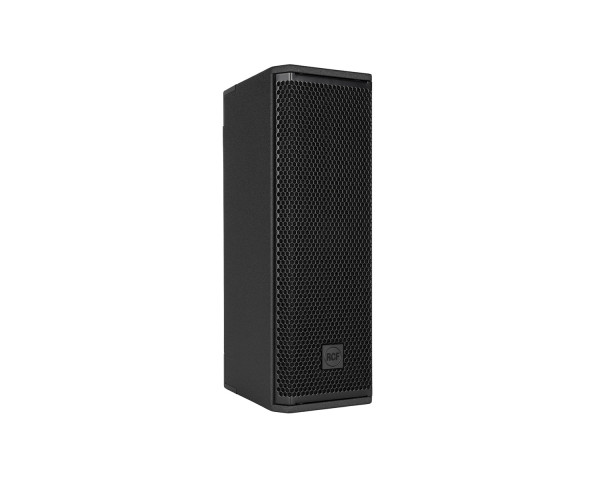

RCF NXL 14-A 2x6 2-Way Active Compact Loudspeaker 2100W Black - Main Image
RCF NXL 14-A 2x6 2-Way Active Compact Loudspeaker 2100W Black - Image 1
RCF NXL 14-A 2x6 2-Way Active Compact Loudspeaker 2100W Black - Image 2
RCF NXL 14-A 2x6 2-Way Active Compact Loudspeaker 2100W Black - Image 3
RCF NXL 14-A 2x6 2-Way Active Compact Loudspeaker 2100W Black - Image 4
RCF NXL 14-A 2x6 2-Way Active Compact Loudspeaker 2100W Black - Image 5
Price:
RRP: £1,101.60 inc VAT
Code:
RCFNXL14A
Manufacturer Code:
13000888
Brand:
RCF

Quantity required:

Main Features

  • 128 dB max SPL
  • 2100W Class-D Bi-Amplification
  • 70-20000 Hz linear frequency range
  • 1.75" PKX / Neodymium Compression Driver
  • 2 x 6" High Power Neodymium Woofers
  • Rotatable 100° x 70° TRW Waveguide
Share:

NXL 14-A 2x6" 2-Way Action Column Loudspeaker Array 2100W Black

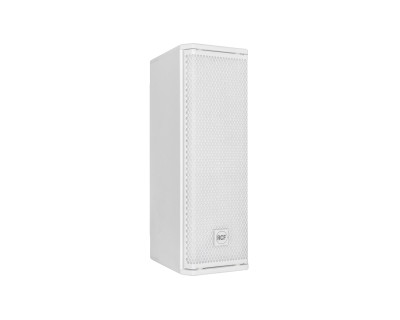

NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6” woofers in a symmetrical configuration and the new 1.75” Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. Available in black or white finish, the NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.

Product Features

  • 128 dB max SPL
  • 2100W Class-D Bi-Amplification
  • 70-20000 Hz linear frequency range
  • 1.75" PKX / Neodymium Compression Driver
  • 2 x 6" High Power Neodymium Woofers
  • Rotatable 100° x 70° TRW Waveguide
  • FiRPHASE and Bass Motion Control

Product Specifications

  • Acoustical specifications
    • Frequency Response:  70 Hz ÷ 20000 Hz
    • Max SPL @ 1m:  128 dB
    • Horizontal coverage angle:  100°
    • Vertical coverage angle:  70°
  • Transducers
    • Compression Driver:  1 x 1.0'' neo, 1.75'' v.c
    • Woofer:  2 x 6.0'' neo, 2.0'' v.c
  • Input/Output section
    • Input signal:  bal/unbal
    • Input connectors:  Combo XLR/Jack
    • Output connectors:  XLR
    • Input sensitivity:  -2 dBu/+4 dBu
  • Processor section
    • Crossover Frequencies 1200
    • Protections:  Excurs.
    • Limiter:  Fast Limiter
    • Controls:  Linear/Boost/Stage Presets, Volume.
  • Power section
    • Total Power:  2100 W Peak
    • High frequencies:  700 W Peak
    • Low frequencies:  1400 W Peak
    • Cooling:  Convection
    • Connections:  Powercon TRUE1 TOP IN/OUT
  • Standard compliance Safety agency:  CE compliant
  • Cabinet/Case Material:  Plywood
  • Hardware
    • 2 X M10 TOP AND BOTTOM
    • 2 X PIN D.10
    • Handles: 2 TOP AND BOTTOM
    • Grille:  Steel
    • Colour:  Black - RAL 9005
  • Physical & Dimensions
    • Height:  567 mm / 22.32 inches
    • Width:  197 mm / 7.76 inches
    • Depth:  270 mm / 10.63 inches
    • Weight:  12.8 kg / 28.22 lbs
