NXL 24-A MK2 4x6" 2-Way Active Column Loudspeaker Array 2100W

« return to previous page

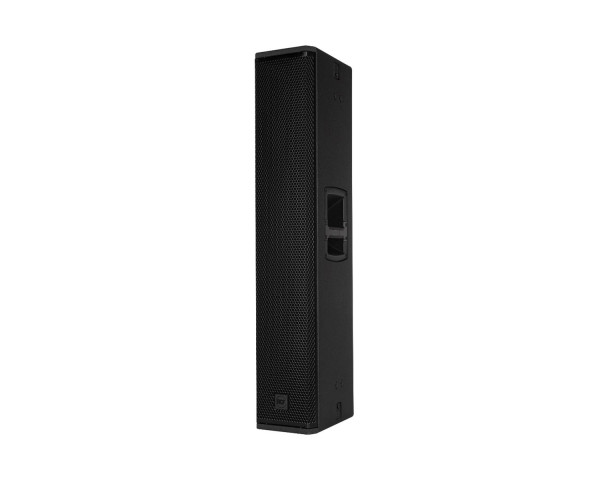

RCF NXL 24-A MK2 4x6 2-Way Active Column Loudspeaker Array 2100W - Main Image
RCF NXL 24-A MK2 4x6 2-Way Active Column Loudspeaker Array 2100W - Image 1
RCF NXL 24-A MK2 4x6 2-Way Active Column Loudspeaker Array 2100W - Image 2
RCF NXL 24-A MK2 4x6 2-Way Active Column Loudspeaker Array 2100W - Image 3
RCF NXL 24-A MK2 4x6 2-Way Active Column Loudspeaker Array 2100W - Image 4
RCF NXL 24-A MK2 4x6 2-Way Active Column Loudspeaker Array 2100W - Image 5
RCF NXL 24-A MK2 4x6 2-Way Active Column Loudspeaker Array 2100W - Image 6
Price:
RRP: £1,897.20 inc VAT
Code:
RCFNXL24A2
Manufacturer Code:
13000610
Brand:
RCF

Quantity required:

Main Features

  • Up to 132 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 100° x 30° Constant Directivity Coverage Angle
  • 3" Titanium Neodymium Compression Driver
  • 4 x 6" High Power Neodymium Woofers
  • 60-20000 Hz linear Frequency Response
Share:

NXL 24-A MK2 4x6" 2-Way Active Column Loudspeaker Array 2100W

NXL 24-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2100W two-channel amplifier produce coherent 100° x 30° coverage for the listening area with up to 132 dB. The two-way design features four 6” neodymium woofers and a 3” driver on an asymmetrical waveguide. The horn’s design delivers accurate sound to the coverage area without tilting the enclosure. The speaker delivers an extended frequency range down to 60 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 24-A MK2 for extended coverage. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 24-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, high-quality baltic birch plywood cabinet is easy to carry and installed securely using the dedicated rigging points.

Product Features

  • Up to 132 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 100° x 30° Constant Directivity Coverage Angle
  • 3" Titanium Neodymium Compression Driver
  • 4 x 6" High Power Neodymium Woofers
  • 60-20000 Hz linear Frequency Response
  • Bass Motion Control and FiRPHASE processing
  • 4 x M8 Rigging Points and 4 x Quick Lock

Product Specifications

Acoustical specifications

  • Frequency Response:  60 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  132 dB
  • Horizontal coverage angle:  100°
  • Vertical coverage angle:  30°

Transducers

  • Compression Driver:  1 x 1.4'' neo, 3.0'' v.c
  • Woofer:  4 x 6.0'' neo, 1.5'' v.c

Input/Output section

  • Input signal:  bal/unbal
  • Input connectors:  Combo XLR/Jack
  • Output connectors:  XLR
  • Input sensitivity:  +4 dBu

Processor section

  • Crossover Frequencies:  800
  • Protections:  Thermal, Excurs., RMS
  • Limiter:  Soft Limiter
  • Controls:  Linear, 2 Speakers, High-Pass, Volume

Power section

  • Total Power:  2100 W Peak
  • High frequencies:  700 W Peak
  • Low frequencies:  1400 W Peak
  • Cooling:  Convection
  • Connections:  Powercon TRUE1 TOP IN/OUT

Standard compliance

  • CE marking:  Yes

Physical & Dimensions

  • Cabinet/Case Material:  Baltic birch plywood
  • Hardware:  4 x M8, 4 x quick lock
  • Handles:  2 side
  • Pole mount/Cap:  Yes
  • Grille:  Steel
  • Colour:  Black
  • Height:  1056 mm / 41.57 inches
  • Width:  201 mm / 7.91 inches
  • Depth:  274 mm / 10.79 inches
  • Weight:  24.4 kg / 53.79 lbs
