NXL 44-A MK2 3x10" 2-Way Active Column Loudspeaker Array 2100W

« return to previous page

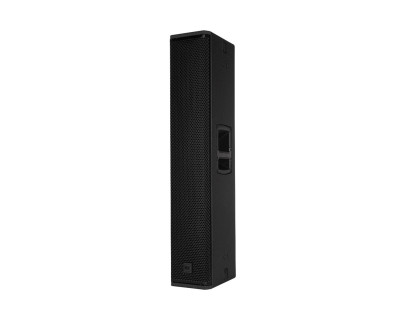

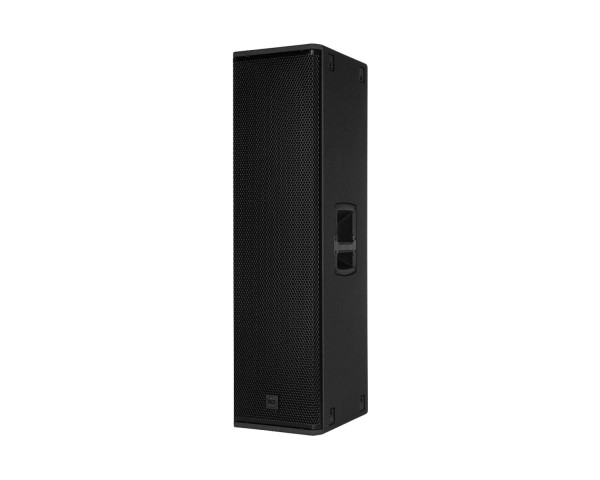

RCF NXL 44-A MK2 3x10 2-Way Active Column Loudspeaker Array 2100W - Main Image
RCF NXL 44-A MK2 3x10 2-Way Active Column Loudspeaker Array 2100W - Image 1
RCF NXL 44-A MK2 3x10 2-Way Active Column Loudspeaker Array 2100W - Image 2
RCF NXL 44-A MK2 3x10 2-Way Active Column Loudspeaker Array 2100W - Image 3
RCF NXL 44-A MK2 3x10 2-Way Active Column Loudspeaker Array 2100W - Image 4
RCF NXL 44-A MK2 3x10 2-Way Active Column Loudspeaker Array 2100W - Image 5
RCF NXL 44-A MK2 3x10 2-Way Active Column Loudspeaker Array 2100W - Image 6
RCF NXL 44-A MK2 3x10 2-Way Active Column Loudspeaker Array 2100W - Image 7
Price:
RRP: £2,583.60 inc VAT
Code:
RCFNXL44A2
Manufacturer Code:
13000609
Brand:
RCF

Quantity required:

Main Features

  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 100° x 25° Constant Directivity Coverage Angle
  • 3" Titanium Neodymium Compression Driver
  • 3 x 10" High Power Neodymium Woofers
  • 45-20000 Hz linear Frequency Response
Share:

NXL 44-A MK2 3x10" 2-Way Active Column Loudspeaker Array 2100W

NXL 44-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2,100W two-channel amplifier produce coherent 100° x 25° coverage for the listening area up to 135 dB SPL. The two-way design features three 10” neodymium woofers and a 3” driver on a waveguide. The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 44-A MK2 for extended coverage. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 44-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, plywood cabinet is easy to carry and installed securely using the dedicated rigging points. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems.

Product Features

  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 100° x 25° Constant Directivity Coverage Angle
  • 3" Titanium Neodymium Compression Driver
  • 3 x 10" High Power Neodymium Woofers
  • 45-20000 Hz linear Frequency Response
  • Bass Motion Control and FiRPHASE processing
  • 8 x M8 Rigging Points and 8 x Quick Lock
  • IP Rated Powercon TRUE1 TOP IN/OUT

Product Specifications

Acoustical specifications

  • Frequency Response:  45 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  135 dB
  • Horizontal coverage angle:  100°
  • Vertical coverage angle:  25°

Transducers

  • Compression Driver:  1 x 1.4'' neo, 3.0'' v.c
  • Woofer:  3 x 10'' neo, 2.5'' v.c

Input/Output section

  • Input signal:  bal/unbal
  • Input connectors:  Combo XLR/Jack
  • Output connectors:  XLR
  • Input sensitivity:  -2 dBu/+4 dBu

Processor section

  • Crossover Frequencies:  800
  • Protections:  Thermal, Excurs., RMS
  • Limiter:  Soft Limiter
  • Controls:  Linear, 2 Speakers, High-Pass, Volume

Power section

  • Total Power:  2100 W Peak
  • High frequencies:  700 W Peak
  • Low frequencies:  1400 W Peak
  • Cooling:  Convection
  • Connections:  Powercon TRUE1 TOP IN/OUT

Standard compliance

  • CE marking:  Yes

Physical specifications

  • Cabinet/Case Material:  Baltic birch plywood
  • Hardware:  8 x M8, 8 x quick lock
  • Handles:  2 side
  • Pole mount/Cap:  Yes
  • Grille:  Steel
  • Colour:  Black
  • Height:  1080 mm / 42.52 inches
  • Width:  297.5 mm / 11.71 inches
  • Depth:  373 mm / 14.69 inches
  • Weight:  33.4 kg / 73.63 lbs
