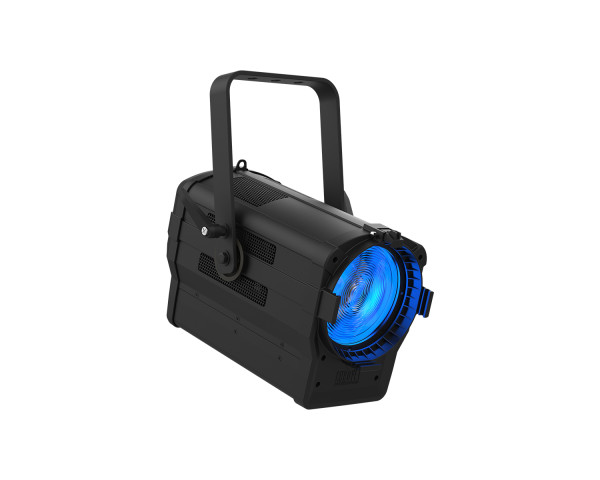

Ovation F-415FC-2 LED Fresnel RGBAL Motorised Zoom 14–68°

Product Features

• New Model: Now with powerCON® TRUE1
• Full-colour LED (RGBAL) Fresnel lighting fixture for theatre, film and production
• Soft and even field of light
• Smooth, motorized zoom from 14° to 68°
• Beautiful 16-bit dimming of master dimmer and individual colours
• Easy to use on board control of color, zoom and dimming
• Virtual Color wheel with colour matched to popular gel colours
• Color Temperature Presets from 2800 K to 6500 K
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications

Product Specifications

Optical

• Light Source:  46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
• Colour Temperature (range):  2800 to 6500 K
• CRI (3200 K):  91
• Beam Angle:  14° to 43°
• Field Angle:  27° to 68°
• Zoom Range:  14° to 68°
• Lumens
  • (27°):  1,877
  • (68°):  2,815
• Illuminance
  • (27°):  915 lux @ 5 m
  • (68°):  190 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorised
• Strobe Rate:  0 to 27 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Modes:  4
• Built-in Automated Programs:  Yes

Connections

• Power Connection:  Edison (local) plug to powerCON® TRUE1
• Power Input:  powerCON® TRUE1
• Power Output:  powerCON® TRUE1
• Data Connectors:  3- and 5-pin XLR
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  DMX, RDM
• DMX Channels:  1, 3, 5, 7, 10, 12, 13 or 15
• Modes/Personalities:  9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
• Power and Current:  130 W, 1.101 A @ 120 V, 60 Hz
• Power and Current:  127 W, 0.638 A @ 208 V, 60 Hz
• Power and Current:  127 W, 0.585 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating:  IP20, dry location
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions:  15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
• Weight:  12 lb (5.6 kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium alloy, Aluminium die-cast
• Accessory Holder/Gel Frame Size:  6.25 in (158.75 mm)

What's in the Box?

• Power cord
• Gel frame (6.25 in / 158.75 mm accessories)
