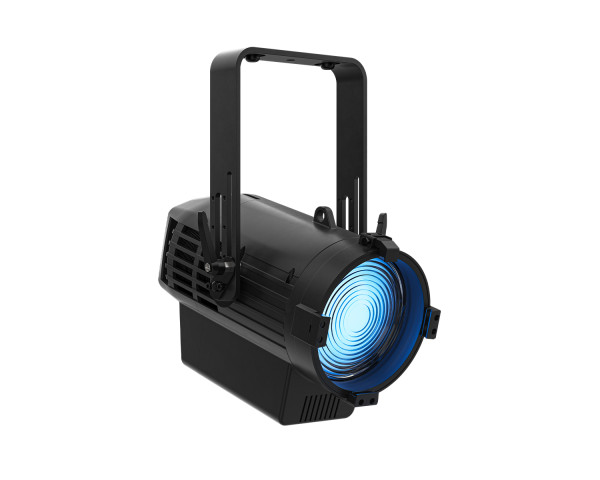

Ovation Reve F-3 LED Fresnel RGBAM Motorised Zoom 10-60°

Product Features

• Full-spectrum LED fresnel lighting fixture for theatre, film and production
• Addition on-board control for multiple parameters via 3 control dials
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• Virtual colour wheel with colour matched to popular gel colours
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio, film and theatre applications
• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
• Innovative adjustable yoke for mounting in low clearance areas
• USB Port for Software updates

Product Specifications

Optical

• Light Source:  126 LEDs (22 red, 14 green, 16 blue, 6 royal blue, 28 amber, 40 mint) 5.8 to 8 W, (1.82 A) 50,000 hours life expectancy.
• Colour Temperature (range):  2800 to 8000 K
• Colour Temperature (at full):  5249 K
• Front lens diameters:  210.8 mm
• CRI:  96
• Beam Angle:  10.9° to 66.5°
• Field Angle:  19.3° to 88.5°
• Cutoff Angle:  26.2° to 97.3°
• Zoom Range:  10.9° to 97.3°
• Lumens (narrow):  6179 lm
• Lumens (wide):  14302 lm
• Lumens (50%):  10330 lm
• Illuminance (narrow):  5375 lux @ 5 m
• Illuminance (wide):  539 lux @ 5 m
• Illuminance (50%):  1858 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorised
• Strobe Rate:  0 to 30 Hz
• Standalone Color Mixing:  Yes
• Color Temperature Presets:  Yes
• Dim Modes:  4
• Dim Curves:  4
• Built-in Automated Programs:  Yes

Connections

• Power Connection:  Edison (Local) plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Power Output:  Seetronic Powerkon IP65
• Data Connectors:  3- and 5-pin XLR
• Cable Length (power):  5 ft (1.5 m)
• Software Connection:  USB

Control

• Control Protocol:  DMX, RDM
• DMX Channels:  1, 5, 6, 8, 12, 14ch1, 14ch2, or 18
• Modes/Personalities:  8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, or 18)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Power and Current:  528 W, 4.39 A @ 120 V, 60 Hz
• Power and Current:  517 W, 2.52 A @ 208 V, 60 Hz
• Power and Current:  513 W, 2.22 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating:  IP20, dry location
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions:  15 x 13.5 x 15.7 in (381.4 x 342 x 399.3 mm)
• Weight:  26.2 lb (11.9kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium die-cast
• Accessory Holder/Gel Frame Size:  7.8 in (198 mm)

What's in the Box?

• Ovation Reve F-3
• Seetronic Powerkon power cord
• Gel frame holder (7.5 in/191 mm accessories)
• Gel frame
• (1) 140mm Omega bracket with mounting hardware
