Parle TTM-XEX Expansion Tabletop AVB Beamtracking Microphone Blk

« return to previous page

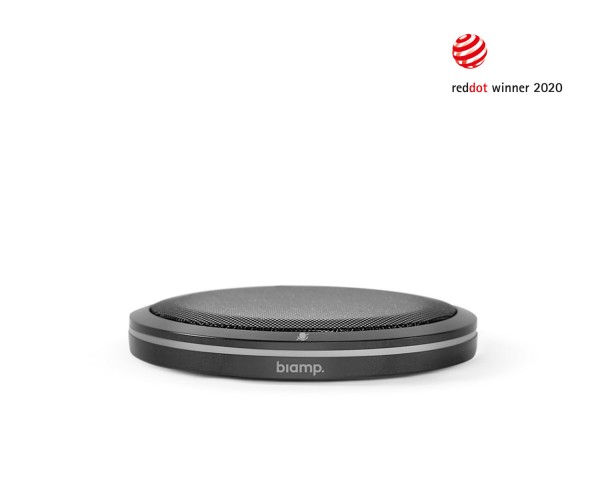

Biamp Parle TTM-XEX Expansion Tabletop AVB Beamtracking Microphone Blk - Main Image
Price:
RRP: £1,034.40 inc VAT
Code:
BIAPTTMXEXB
Manufacturer Code:
911.0511.900
Brand:
Biamp

Quantity required:

Main Features

  • Must be used with a Parlé TTM-X microphone
  • Measures 4.7 inches (120 mm) in diameter
  • Sits directly on a table top to virtually disappear in room
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Four 90-degree zones for full 360-degree room coverage
  • Finish: Black
Share:

Parlé TTM-XEX Tabletop - Black

The Parlé™ TTM-XEX is a tabletop microphone for use in Tesira® and Devio® systems. Each low-profile microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. The TTM-XEX microphone delivers Beamtracking performance in a sleek, unobtrusive design that can be either placed on or mounted to a tabletop. The TTM-XEX actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. In Tesira systems, the TTM-XEX is intended to be used as a second microphone in conjunction with the TTM-X; it cannot operate as a standalone device. In Devio systems, it functions as a standalone microphone. The TTM-XEX is well suited for a variety of room types and sizes that require high-quality audio solutions and low-profile or unobtrusive microphones.

Product Features

  • Must be used with a Parlé TTM-X microphone
  • Measures 4.7 inches (120 mm) in diameter
  • Sits directly on a table top to virtually disappear in room
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Four 90-degree zones for full 360-degree room coverage
  • Uses only one channel of AEC per mic
  • Single cable connection via CAT cable
  • Beamtracking technology works out-of-box without any lobe aiming or room mapping
  • LED mute status indicator
  • Available in either black or white
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Product Specifications

General

  • Microphone Technology: 16-Element Digital Array
  • Frequency Response (150 Hz - 16 kHz): ± 3dB
  • Polar Pattern: Beamformed
  • Sensitivity (94dB SPL, 1kHz): > 74dB
  • Maximum SPL (at 0.5% THD): 109dB
  • Dynamic Range (THD+N < 10%): 90dB, A-Weighted
  • Indicators: Mute Indicator (Green/Red LED)
  • Digital Interface: Custom/Proprietary
  • Connector: RJ-45 (cable length 6.6 feet [2 meters])
  • Power: Custom/Proprietary
  • Max Distance Between Devices: 33 feet (10 meters) between TTM-XEX and DSP host device
  • Environmental:
    • Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
    • Humidity: 0-95% relative humidity (non-condensing)
    • Altitude: 0-10,000 ft (0-3000m) MSL

Overall Dimensions

  • Height: 0.7 inches (18 mm)
  • Diameter: 4.3 inches (110 mm)
  • Weight: 0.5 lbs (231 g)

Compliance

  • FCC Part 15B (USA)
  • CE marked (Europe)
  • UL and C-UL listed (USA and Canada)
  • RoHS Directive (Europe)
