PL6X 6" 2-Way Coaxial Ceiling Speaker 12W 100V IP44 Black

« return to previous page

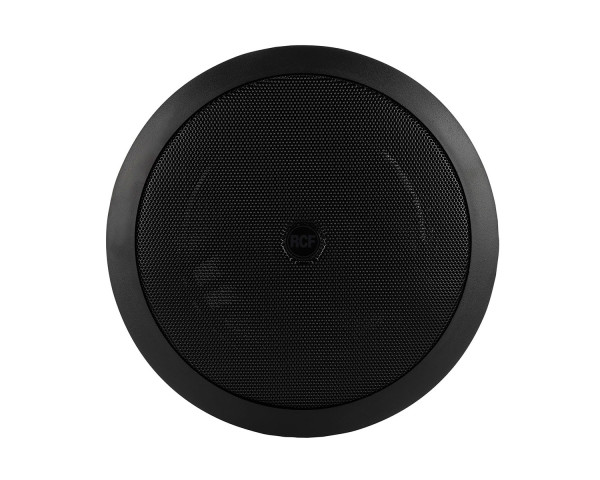

RCF PL6X 6 2-Way Coaxial Ceiling Speaker 12W 100V IP44 Black - Main Image
RCF PL6X 6 2-Way Coaxial Ceiling Speaker 12W 100V IP44 Black - Image 1
RCF PL6X 6 2-Way Coaxial Ceiling Speaker 12W 100V IP44 Black - Image 2
RCF PL6X 6 2-Way Coaxial Ceiling Speaker 12W 100V IP44 Black - Image 3
Price:
RRP: £54.00 inc VAT
Code:
RCFPL6XB
Manufacturer Code:
13100087
Brand:
RCF

Quantity required:

Main Features

  • 6" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
  • 92 dB sensitivity
  • Colour white RAL 9003 and black RAL 9005
  • Plastic frame UL 94 V0, aluminium grille
  • Designed to be flushmounted in false ceilings or panels
Share:

PL 6X 6" 2-Way Coaxial Ceiling Speaker 12W 100V IP44 Black

PL 6X is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 6” coaxial woofer with a 1” tweeter placed on a bridge support. PL 6X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Product Features

  • 6" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
  • 92 dB sensitivity
  • Colour white RAL 9003 and black RAL 9005
  • Plastic frame UL 94 V0, aluminium grille
  • Designed to be flushmounted in false ceilings or panels

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB):  70 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  106 dB
  • Coverage angle:  100°
  • System Sensitivity:  92 dB

Power section

  • Power Handling:  12 W RMS
  • Peak Power Handling:  48 W PEAK
  • Recommended Amplifier:  24 W

Transducers

  • Dome Tweeter:  1.0''
  • Woofer:  6.0''

Input/Output section

  • Input connectors:  Screw Terminals
  • Output connectors:  Screw Terminals
  • Constant Voltage Transformer:  70/100 V
  • Power selection 1:  12 W - 833 ohm
  • Power selection 2:  6 W - 1667 ohm
  • Power selection 3:  3 W - 3333 ohm
  • Power selection 4:  1.5 W - 6667 ohm

Standard compliance

  • IP protection grade:  IP 44
  • CE marking:  Yes

Physical specifications

  • Cabinet/Case Material:  Plastic
  • Hardware:  Plastic Material
  • Grille:  Aluminium
  • Colour:  Black - RAL 9005

Physical & Dimensions

  • Depth:  73 mm / 2.87 inches
  • Recessed Depth:  66 mm / 2.6 inches
  • Diameter:  204 mm / 8.03 inches
  • Cut out diameter:  182 mm / 7.17 inches
  • Weight:  0.78 kg / 1.72 lbs
