PL8X 8" 2-Way Coaxial Ceiling Speaker 20W 100V IP44 Black

« return to previous page

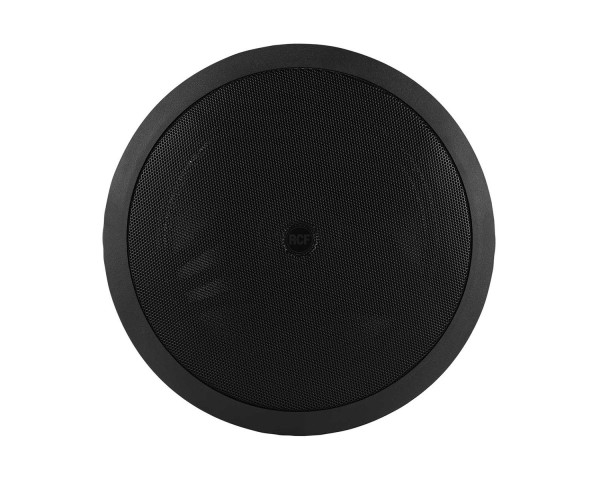

RCF PL8X 8 2-Way Coaxial Ceiling Speaker 20W 100V IP44 Black - Main Image
RCF PL8X 8 2-Way Coaxial Ceiling Speaker 20W 100V IP44 Black - Image 1
RCF PL8X 8 2-Way Coaxial Ceiling Speaker 20W 100V IP44 Black - Image 2
RCF PL8X 8 2-Way Coaxial Ceiling Speaker 20W 100V IP44 Black - Image 3
Price:
RRP: £70.80 inc VAT
Code:
RCFPL8XB
Manufacturer Code:
13100088
Brand:
RCF

Quantity required:

Main Features

  • 8" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
  • 93 dB sensitivity
  • Finish: Black RAL 9005
  • Plastic frame UL 94 V0, aluminium grille
  • Designed to be flush-mounted in false ceilings or panels
Share:

PL 8X 8" 2-Way Coaxial Ceiling Speaker 20W 100V IP44 Black

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Product Features

  • 8" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
  • 93 dB sensitivity
  • Finish: Black RAL 9005
  • Plastic frame UL 94 V0, aluminium grille
  • Can be flush-mounted in false ceilings or panels

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB):  60 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  109 dB
  • Coverage angle:  80°
  • System Sensitivity:  93 dB

Power section

  • Power Handling:  20 W RMS
  • Peak Power Handling:  80 W PEAK
  • Recommended Amplifier:  40 W

Transducers

  • Dome Tweeter:  1.0''
  • Woofer:  8''

Input/Output section

  • Input connectors:  Screw Terminals
  • Output connectors:  Screw Terminals
  • Constant Voltage Transformer:  70/100 V
  • Power selection 1:  20 W - 500 ohm
  • Power selection 2:  10 W - 1000 ohm
  • Power selection 3:  5 W - 2000 ohm
  • Power selection 4:  2.5 W - 4000 ohm

Standard compliance

  • IP protection grade:  IP 44
  • CE marking:  Yes

Physical specifications

  • Cabinet/Case Material:  Plastic
  • Hardware:  Plastic Material
  • Grille:  Aluminium
  • Colour:  Black - RAL 9005

Physical & Dimensions

  • Depth:  88 mm / 3.46 inches
  • Recessed Depth:  80 mm / 3.15 inches
  • Diameter:  247 mm / 9.72 inches
  • Cut out diameter:  224 mm / 8.82 inches
  • Weight:  1.23 kg / 2.71 lbs
