PLP50EN 5" Ceiling Speaker with Plastic Fire Dome EN54 100V

« return to previous page

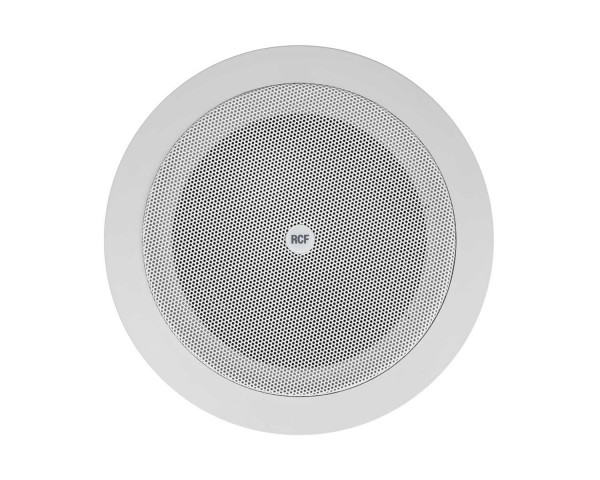

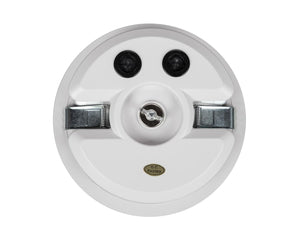

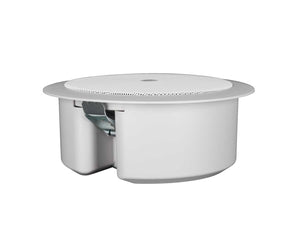

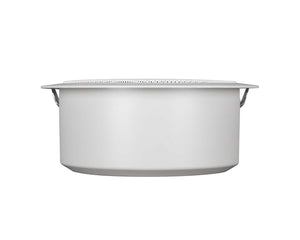

RCF PLP50EN 5 Ceiling Speaker with Plastic Fire Dome EN54 100V - Main Image
RCF PLP50EN 5 Ceiling Speaker with Plastic Fire Dome EN54 100V - Image 1
RCF PLP50EN 5 Ceiling Speaker with Plastic Fire Dome EN54 100V - Image 2
RCF PLP50EN 5 Ceiling Speaker with Plastic Fire Dome EN54 100V - Image 3
RCF PLP50EN 5 Ceiling Speaker with Plastic Fire Dome EN54 100V - Image 4
Price:
RRP: £45.60 inc VAT
Code:
RCFPLP50EN
Manufacturer Code:
13100008
Brand:
RCF

Quantity required:

Main Features

  • 5" full range transducer
  • Power selectable (100 V): 6 W – 3 W – 1.5 W
  • 93 dB sensitivity
  • Colour white RAL 9016
  • Plastic frame and back can, steel grille
  • In/out ceramic terminal block
  • EN54-24 Certified & thermal fuse protection
Share:

PLP 50EN Ceiling Loudspeaker with Plastic Fire Dome

PLP 50EN is a ceiling speaker featuring a flameproof plastic back can, designed for recess installation into ceilings or panels. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.

Product Features

  • 5" full range transducer
  • Power selectable (100 V): 6 W – 3 W – 1.5 W
  • 93 dB sensitivity
  • Colour white RAL 9016
  • Plastic frame and back can, steel grille
  • In/out ceramic terminal block
  • EN54-24 Certified
  • Thermal fuse protection

Product Specifications

Acoustical Specifications

  • FREQUENCY RESPONSE (-10DB):  130 Hz ÷ 15000 Hz
  • MAX SPL @ 1M:  101 dB
  • MAX SPL @ 4M:  89 dB
  • COVERAGE ANGLE:  165°
  • SYSTEM SENSITIVITY:  93 dB
  • SYSTEM SENSITIVITY 1W @ 4M:  81 d

Power Section

  • POWER HANDLING:  6 W RMS
  • PEAK POWER HANDLING:  24 W PEAK
  • RECOMMENDED AMPLIFIER:  12 W
  • PROTECTIONS:  Thermal fuse

Transducers

  • FULLRANGE:  5.0''

Input/Output Section

  • INPUT CONNECTORS:  Ceramic screw terminals
  • OUTPUT CONNECTORS:  Ceramic screw terminals
  • CONSTANT VOLTAGE TRANSFORMER:  100 V
  • POWER SELECTION 1 (100 V):  6 W - 1667 ohm
  • POWER SELECTION 2 (100 V):  3 W - 3333 ohm
  • POWER SELECTION 3 (100 V):  1.5 W - 6667 ohm

Standard Compliance

  • CPR NUMBER:  0068-CPR-051/2017
  • EN54-24 CERTIFIED:  Yes
  • CE MARKING:  Yes

Physical Specifications

  • COLOR:  White - RAL 9016
  • HARDWARE:  Plastic back cover
  • GRILLE:  Steel
  • CABINET/CASE MATERIAL:  Plastic

Size

  • DEPTH:  71 mm / 2.8 inches
  • RECESSED DEPTH:  66 mm / 2.6 inches
  • DIAMETER:  175 mm / 6.89 inches
  • WEIGHT:  0.66 kg / 1.46 lbs
  • CUT OUT DIAMETER:  149 mm / 5.87 inches

Shipping Information

  • PACKAGE WEIGHT:  0.66 kg / 1.46 lbs
  • PACKAGE DEPTH:  180 mm / 7.09 inches
  • PACKAGE WIDTH:  190 mm / 7.48 inches
  • PACKAGE HEIGHT:  110 mm / 4.33 inches

Optional Accessories

  • CV210 Fire Resistant Loudspeaker Cable
  • CV215 Fire Resistant Loudspeaker Cable
  • CV225 Fire Resistant Loudspeaker Cable
