PM-4SA 4-Zone Paging Mic with SD Card Spot Announcer MP3/WMA

« return to previous page

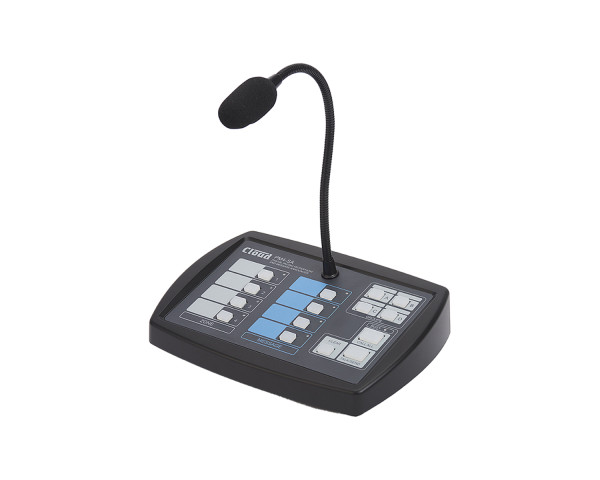

Cloud PM-4SA 4-Zone Paging Mic with SD Card Spot Announcer MP3/WMA - Main Image
Cloud PM-4SA 4-Zone Paging Mic with SD Card Spot Announcer MP3/WMA - Image 1
Cloud PM-4SA 4-Zone Paging Mic with SD Card Spot Announcer MP3/WMA - Image 2
Price:
RRP: £426.00 inc VAT
Code:
CLOPM4SA
Manufacturer Code:
PM4SAEK
Brand:
Cloud

Quantity required:

Main Features

  • Individual and multiple zone selection by mic or message
  • Remote message trigger contacts (NO/NC contacts) for PIRs, Timer, DVR/Cameras
  • User definable WAV & MP3 recordable message - any length
  • Definable zone groups with group selection
  • Pre-announcement chime (recordable on SD card)
  • Pictured with the 8-Way PM8-SA
Share:

PM4-SA - 4 Zone Paging Spot Announcer

The Cloud PM4-SA / PM8-SA Mutizone Paging Microphones with 'Spot Announcer' capability offer reliable paging microphone performance with the added functionality of pre-recorded message announcement capability.

Up to four (PM4-SA) or eight (PM8-SA) pre-recorded messages, of any length, can be stored internally on a standard SD memory card, plugged into a dedicated card slot and accessed through the base plate of the PM-SA unit.

A 'Group' function allows an individual message and a number of zones to be grouped together which allows single-button playback of individual messages to a specified number of zones, handy for regular announcements. The 'Group' function can also be remotely triggered by remote timers, PIR's, Camera's and DVR's using a NO/NC contact.

Messages for announcement and pre-announcement chime sound files (.WAV or .MP3) need to be prepared on a computer with a SD card slot, and then saved to the SD card.  For operational and security reasons messages cannot be overwritten by the paging microphone.

An SD card is supplied with each PM-SA unit, with pre-announcement chime sound files already loaded.

Product Features

  • Individual and Multiple Zone Selection by Mic or Message
  • Remote Message Trigger Contacts (NO/NC Contacts) for PIRs, Timer, DVR/Cameras
  • User Definable .WAV & .MP3 Recordable Message - any length
  • Definable Zone Groups with Group Selection
  • Pre-Announcement Chine (recordable on SD Card)
  • TALK & CALL ALL Buttons
  • BUSY LED
  • Configurable 2-Layer Announcement Priority
  • Auto Zone Reset after Announcement
  • Zone Disable Function

Product Specifications

  • Microphone:
    • Capsule Type:   Condenser
    • Polar Pattern:   Cardioid
    • Gooseneck length:   300 mm (standard); 140 mm (alternative Part No. MI100166)
  • Number of Zones:
    • PM4-SA:  4
    • PM8-SA:  8
  • Number of Chimes:
    • PM4-SA:  4
    • PM8-SA:  8 (derived from SD card); internal speaker
  • Interface:
    • Digital:   Cloud Digital Paging Interface (RJ45)
    • Analogue:   Zone Access Output (Short to Ground), Audio Output
  • Messages:
    • PM4-SA:  4
    • PM8-SA:  8; internal speaker
  • Card format
    • SD/SDHC
    • MiniSD/SDHC*
    • MicroSD/SDHC*
  • File system:
    • PM4-SA:  FAT16
    • PM8-SA:  FAT32
  • File types:  MP3 or WMA
  • Power input
    • Voltage range:
      • PM4-SA:  9 - 17 VAC
      • PM8-SA:  12 - 24 VDC
    • Current consumption:
      • 120 mA (PM4-SA, idle mode)
      • 220 mA (PM4-SA, message mode)
      • 150 mA (PM8-SA, idle mode)
      • 250 mA (PM8-SA, message mode)
  • Dimensions:  245 wide x 65 high (less gooseneck mic) x 170 deep (mm)
  • Net Weight:  1.2 kg
