Main Features
Individual and multiple zone selection
Definable Individual and multiple zone selection
Pre-announcement chime with internal chime sounder
Auto-zone reset after announcement
Configurable two-layer announcement priority system

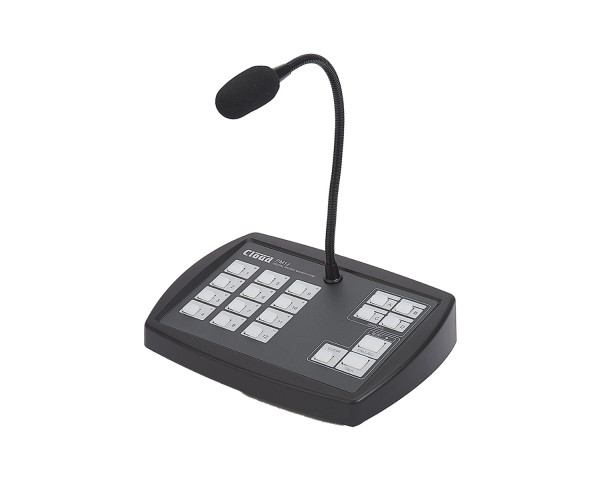

The PM Range of Paging Microphones are designed for general purpose multizone applications and can also be used with non-Cloud products.
Four models of the PM are available: the PM4, PM8, PM12 and PM16. The models differ only in the number of zone select buttons on the front panel (4, 8, 12 or 16 respectively), and consequently in the maximum of zones that can be supported.
The PM is designed to interface directly with recent Cloud products - such as the DCM1 - via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.
The PM is also compatible with the older Cloud CDPM range of digital paging microphones. PM microphones and CDPM microphones may be freely intermixed on the Digital Paging Interface.
Product Features
Individual and multiple zone selection
Defineable zone groups with group selection
Pre-announcement chime with internal chime sounder
"Talk" and "Call-all" buttons
"Busy" LED
Configurable two-layer announcement priority system
Auto-zone reset after announcement
Zone disable function
Product Specifications
Microphone:
Capsule Type Electret Condenser
Polar Pattern Cardioid
Sensitivity 68 dB ±3 dB (0 dB = 1 V/μbar @ 1 kHz)
Frequency response 80 Hz to 16 kHz
Number of Zones:
PM1: 1
PM4: 4
PM8: 8
PM12: 12
PM16: 16
Chime:
Number of Chimes: 4 (user-selectable), with Internal Speaker
Interfaces
Digital: Cloud Digital Paging Interface (RJ45)
Analogue: 1) Zone Access Output (Short-to-Ground); 2) Audio output (balanced)
Power Input:
Via digital interface: Via RJ45 Digital Paging Interface connector
Via analogue interface: Via internal screw-terminal access port connector
Local supply: 9 - 17 VAC or 12 - 24 VDC, via rear 2.1 mm coaxial connector
Current Consumption
PM4: 55 mA (idle mode), 72 mA (peak)
PM8: 61 mA (idle mode), 83 mA (peak)
PM12: 67 mA (idle mode), 95 mA (peak)
PM16: 73 mA (idle mode), 107 mA (peak)
Dimensions:
Base unit: 245 wide x 65 high (less gooseneck mic) x 170 deep (mm) / 9.65” wide x 2.56” high (less gooseneck mic) x 6.7” deep
Gooseneck length: 300 mm (standard); 140 mm (alternative Part No. MI100166)
Shipping: 250 wide x 200 high x 240 deep (mm) / 10” wide x 8” high x 9” deep
