PC-12+ 12

Price:: RRP: £433.92 inc VAT
Code:: ELEPC12
Manufacturer Code:: F.01U.411.907
Brand:: Electro-Voice

Main Features

12 inch
Dual Capsule Design with four polar patterns: Omnidirectional, Cardioid,
Supercardioid, and Hypercardioid.
Configurable push-button switch with status LED.
Controls are on the bottom, hidden from view.
XLR mounted or flush mounted.

Full Description

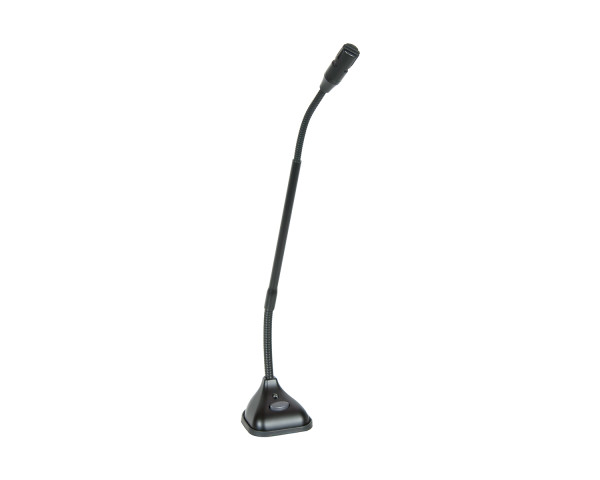

PC-12+ 12 Multi Pattern Gooseneck Mic with Shock Mount / Switch

The PolarChoice PC-Plus is the first miniature gooseneck microphone to combine the features and functionality of a desktop mic, with the small unobtrusive size of an XLR mounted gooseneck microphone. The unique profile of the PC-Plus housing places the push button switch and status LED in a more natural position and also creates a lower profile housing. You can even go one step further: The lower half of the PC-Plus (with hardware) The push-button can be configured for either toggle (push on / off), or as push-to mute (cough switch). You can also configure the microphones’ state when power is first applied in toggle mode. So, for example, if you have an installation with multiple PC Plus microphones, you can configure so that only one mic is live, when the system is first turned on.

Features

Product Features

12 inch
Dual Capsule Design with four polar patterns: Omnidirectional, Cardioid,
Supercardioid, and Hypercardioid.
Configurable push-button switch with status LED.
Controls are on the bottom, hidden from view.
XLR mounted or flush mounted.
Switchable high pass filter.
Consistant on-axis response.
Non-reflecting black finish.

Technical Specs

Product Specifications

Generation Element: Dual condenser, back electret
Frequency Response: 50 Hz to 20,000 Hz (see chart)
Polar Patterns: (see chart) Omnidirectional, Cardioid, Supercardioid, Hypercardioid
Switches and Controls:
- Top mounted momentary push-button
- Push on/off, or push-to-mute selector
- Power up on/off selector
- High-pass enable
- 4-position polar pattern selector
Sensitivity, Open Circuit Voltage, 1 kHz: 5.6mV/Pascal
Clipping Level (1% THD): >135 dB SPL
Equivalent Noise:
- <26 dB SPL "A" weighted
- (0 dB=20 micropascals
- Dynamic Range: >109 dB
Output Impedance, 1 kHz: 200 ohms
Power Requirements: Phantom, 12 - 52 VDC
Current Consumption: < 8 mA with P12 supply
Polarity: Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm
Dimensions:
- Gooseneck Length: 305 mm (12 in.)
- Maximum Head Diameter: 14.6 mm (0.58 in.)
- Gooseneck Diameter:
- Lower section: 7.9 mm (0.31 in.)
- Upper section: 6.4 mm (0.25 in.)
Accessories Furnished:
- Windscreen
- Two-piece shock mount
- Flush mount parts kit
Optional Accessories:
- FMK flange-mount kit
- CPSM shock-mount kit
Colour: Non-reflecting black
Environmental Conditions:
- Relative Humidity 0-50%:
- -29° to 74°C (-20° to 165°F)
- Relative Humidity 0 to 95%:
- -29° to 57°C (-20° to 135°F)
Net Weight: 201 grams (7.1 oz)
