PC-18XLR 18 Multi Pattern Gooseneck Mic with Shock Mount

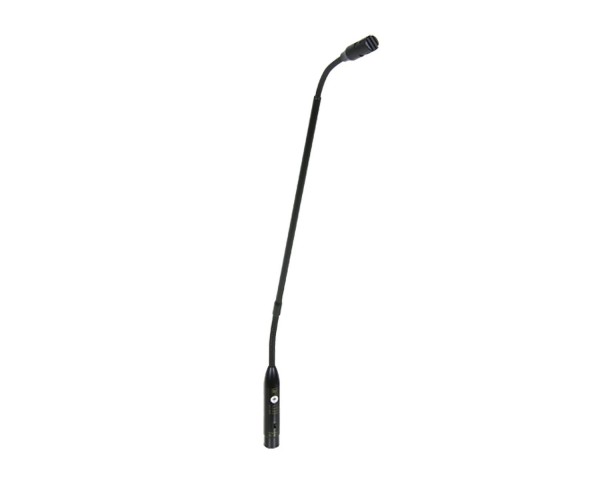

Electro-Voice PC-18XLR 18 Multi Pattern Gooseneck Mic with Shock Mount - Main Image

Price:: RRP: £522.72 inc VAT
Code:: ELEPC18XLR
Manufacturer Code:: F.01U.410.841
Brand:: Electro-Voice

Main Features

Dual Capsule Design with 4 selectable polar patterns: Omnidirectional, Cardioid, Supercardioid, and Hypercardioid
Includes CPSM Isolating shock mount
RF Shield guards against RF/GSM interference
Extended low frequency and switchable high pass filter
Semi-Gloss Black finish
18" Gooseneck

PolarChoice PC18XLR 18" Multi-Pattern Gooseneck CPSM Shock Mount

The PolarChoice™ PC-12/XLR and PolarChoice™ PC-18/XLR are multi-pattern miniature gooseneck podium microphones designed for sound reinforcement systems where sound quality and gain-before-feedback is of major importance. The multi-pattern versatility of the PolarChoice microphone makes it true “problem solver”. With 3 directional and one non-directional polar pattern available, the PolarChoice microphone is ideal for virtually any installation. Polar patterns can be easily changed, using a small flat-bladed screwdriver with the front-mounted rotary control.

Altering the polar pattern does not change the on-axis sonic character of the microphone; therefore changes in equalizer settings are unnecessary. The PolarChoice™ PC-12/XLR and PolarChoice™ PC-18/XLR are acoustically designed for high-quality sound reinforcement and broadcast applications. The frequency response is tailored for wide-range sound reproduction with very natural sound pick-up for either distant or close-up use. The small, dual diameter gooseneck has two supple joints and a rigid center tube. The rigid tube prevents unsightly twisting of the gooseneck but permits the user to exactly position the microphone. The electronics housing’s 3/4-inch diameter base is terminated with a male XLR-type 3-pin connector that allows the microphone to be plugged directly into an existing panel-mount XLR receptacle. The housing is machined brass for ruggedness and superior EMI/RFI attenuation. The PolarChoice™ PC-12/XLR and PolarChoice™ PC-18/XLR are designed to be phantom-powered with a wide voltage range of 12-52V dc (DIN Standard 45 596).

Product Features

Dual Capsule Design with 4 selectable polar patterns: Omnidirectional, Cardioid, Supercardioid, and Hypercardioid
Includes CPSM Isolating shock mount
RF Shield guards against RF/GSM interference
Extended low frequency and switchable high pass filter
Semi-Gloss Black finish
18" Gooseneck
3-pin male XLR-type output connector
Phantom powered back-electret condenser

Product Specifications

Generation Element: Dual condenser, back electret
Frequency Response: 50 Hz to 20,000 Hz (see chart)
Polar Patterns:
- Omnidirectional
- Cardioid
- Supercardioid
- Hypercardioid
Sensitivity:
- Open Circuit Voltage, 1 kHz:
- 5.6mV/Pascal
Clipping Level (1% THD): >135 dB SPL
Equivalent Noise: <26 dB SPL “A” weighted (0 dB=20 micropascals)
Dynamic Range: >109 dB
Output Impedance, 1 kHz: 200 ohms
Power Requirements: Phantom, 12 – 52 VDC
Current Consumption: < 8 mA with P12 supply
Polarity: Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm
Dimensions:
- Gooseneck Length:
  - PolarChoice™ PC-12/XLR: 316.4 mm (12.5 in.)
  - PolarChoice™ PC-18/XLR: 460.4 mm (18.1 in.)
- Maximum Head Diameter: 14.6 mm (0.58 in.)
- Gooseneck Diameter: 6.4/7.9 mm (0.25/0.312 in.)
- Electronics Module Diameter: 20 mm (0.79 in.)
- Connector Diameter: 19 mm (0.75 in.)
Colour: Non-reflecting black
Environmental Conditions:
- Relative Humidity 0-50%: -29° to 74°C (-20° to 165°F)
- Relative Humidity 0 to 95%: -29° to 57°C (-20° to 135°F)
Net Weight:
- PolarChoice™ PC-12/XLR: 170 grams (6.0 oz)
- PolarChoice™ PC-18/XLR: 178 grams (6.3 oz)
