PRX818XLFW 18" Class-D Active Subwoofer with WiFi 1500W

« return to previous page

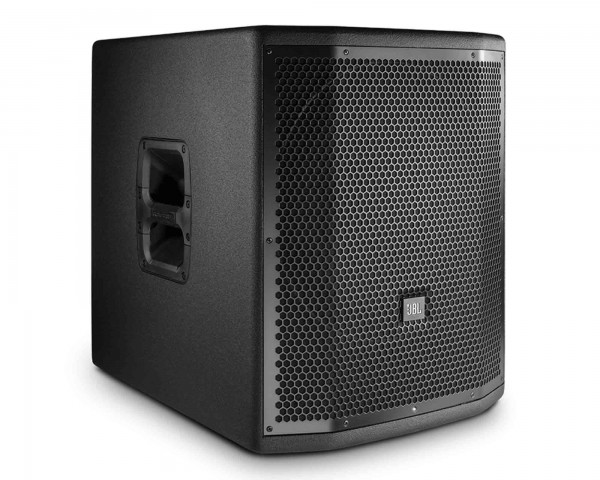

JBL PRX818XLFW 18 Class-D Active Subwoofer with WiFi 1500W - Main Image
JBL PRX818XLFW 18 Class-D Active Subwoofer with WiFi 1500W - Image 1
JBL PRX818XLFW 18 Class-D Active Subwoofer with WiFi 1500W - Image 2
JBL PRX818XLFW 18 Class-D Active Subwoofer with WiFi 1500W - Image 3
Price:
RRP: £1,669.00 inc VAT
Code:
JBLPRX818X
Manufacturer Code:
JBL1795
Brand:
JBL

Quantity required:

Main Features

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • Next-generation JBL neodymium compression drivers
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Universal power supply for worldwide compatibility
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
Share:

PRX818XLFW 18" Class-D Active Subwoofer with WiFi

The PRX818XLFW extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/ sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX818XLFW performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimisation.

Product Features

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen - including the famous JBL 100 - hour power test - ensures reliable performance

Product Specifications

General

  • System Type: Self Powered 18” subwoofer
  • Maximum SPL Output: 134 dB peak
  • Frequency Range (-10 dB): 30 Hz - 103 Hz
  • Frequency Response (±3 dB): 35 Hz – 87 Hz
  • Input Connectors: Two Balanced female XLR/ 1/4” combo connectors
  • Input Impedance: 20K Ohms (balanced)
  • Signal Indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.
  • Dynamic Control (Input): dbx Type IV™ limiter circuit
  • Internal Crossover Frequency: 100 Hz DSP
  • Loop out Crossover Frequency: 120 Hz analog 24 dB filter slope
  • Design: Highly efficient Class-D amplifier
  • Power Rating: 1500W
  • AC Power Input: 100V - 240V ~ 50/60 Hz
  • LF Driver: 1 x JBL 2275H 15 in woofer
  • Enclosure: Rectangular, 18 mm & 25 mm, plywood
  • Transport: 2 x injection molded handles with backing cup
  • Finish: Obsidian DuraFlex™ finish
  • Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Physical & Dimensions

  • Height: 692mm
  • Width: 523mm
  • Depth: 724mm
  • Weight: 36.8kg
