PRX825 2-Way DUAL 15" Class-D Active Speaker with WiFi 1500W

« return to previous page

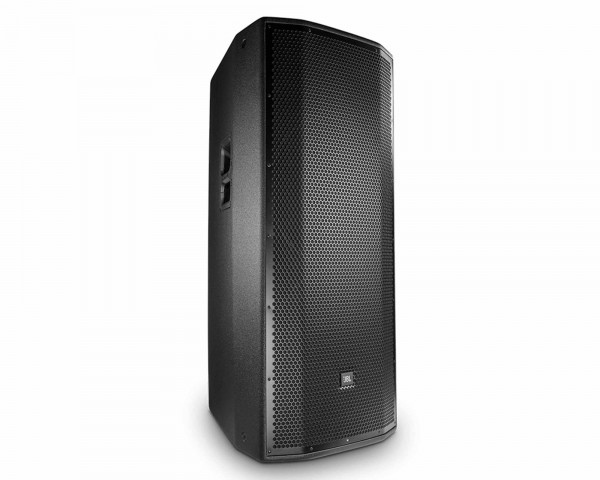

JBL PRX825 2-Way DUAL 15 Class-D Active Speaker with WiFi 1500W - Main Image
JBL PRX825 2-Way DUAL 15 Class-D Active Speaker with WiFi 1500W - Image 1
JBL PRX825 2-Way DUAL 15 Class-D Active Speaker with WiFi 1500W - Image 2
JBL PRX825 2-Way DUAL 15 Class-D Active Speaker with WiFi 1500W - Image 3
Price:
RRP: £1,899.00 inc VAT
Code:
JBLPRX825W
Manufacturer Code:
JBL1798
Brand:
JBL

Quantity required:

Main Features

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Universal power supply for worldwide compatibility
  • JBL Differential Drive transducers for higher SPL in a lightweight design
  • Brutal testing regimen - including the famous JBL 100 - hour power test - ensures reliable performance
Share:

PRX825 2-Way DUAL 15" Class-D Active Speaker with WiFi

The JBL PRX825W is a full-range speaker designed for main system applications. Featuring a dual 15”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX825W delivers incredible volume in a lightweight and compact form factor.

Product Features

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen - including the famous JBL 100 - hour power test - ensures reliable performance

Product Specifications

Genreal

  • System Type: Self Powered Dual 15”, two-way, bass-reflex
  • Maximum SPL Output: 138 dB peak
  • Frequency Range (-10 dB): Normal: 46.2Hz–16.5 kHz Boost: 46 Hz – 18.3 kHz
  • Frequency Response (±3 dB): Normal: 52.6 Hz –17 kHz Boost:51.8Hz– 17.5k
  • Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
  • Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
  • Signal Indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.
  • EQ: User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application
  • Dynamic Control (Input): dbx Type IV™ limiter circuit
  • Crossover Frequency: 2.4 kHz
  • Design: Highly efficient Class-D amplifier
  • Power Rating: 1500W (750W x 2)
  • AC Power Input: 100V - 240V ~ 50/60 Hz
  • LF Driver: 2 x JBL 275 (15 in) woofer
  • HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
  • Coverage Pattern: 90° x 50° nominal
  • Directivity Index (DI): 10.4 dB
  • Directivity Factor (Q): 11
  • Enclosure: Trapezoidal, 18 mm, plywood
  • Suspension / Mounting: 8 x M10 Suspension Points, 1 x M10 pull back point
  • Transport: 2x integrated handles with injection molded backing cup
  • Finish: Obsidian DuraFlex™ finish
  • Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Physical & Dimensions

  • Height: 1061mm
  • Width: 446mm
  • Depth: 539mm
  • Weight: 37.19kg
