R.15COAX 6.5

Price:: RRP: £561.60 inc VAT
Code:: COMR15COAX
Manufacturer Code:: 911.1234.900
Brand:: Community

Main Features

2-Way Coaxial Loudspeaker
6.5" carbon ring cone
Premium music applications
Micro-size, efficient uniform high output
NeverWet™ treated grille, and included powder-coated mounting bracket
Finish: Grey

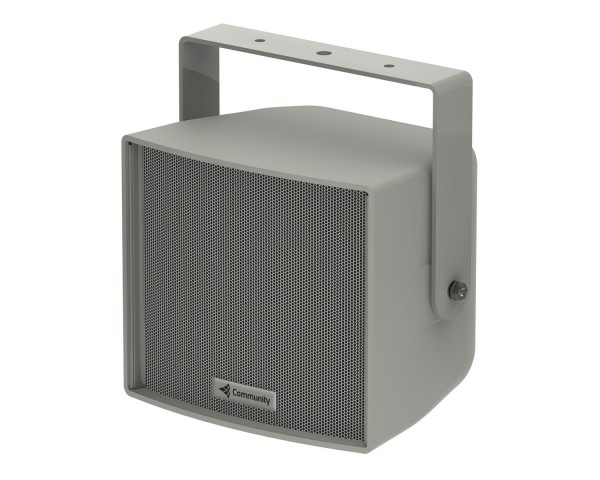

R.15COAX 6.5" 2-Way Coaxial Loudspeaker - Grey

The ultra-compact R.15 and R.35 models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. The R.15COAX and R.35COAX use identical 1.25-inch exit HF compression drivers, featuring Community’s exclusive Tru-Phase™ phase plug and Carbon Ring Cone Technology™. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, non-resonant low frequency reproduction, while identical voicing ensures a uniform listening experience.

Product Features

2-Way Coaxial Loudspeaker
6.5" carbon ring cone
Premium music applications
Micro-size, efficient uniform high output
NeverWet™ treated grille, and included powder-coated mounting bracket
Finish: Grey

Product Specifications

Transducers: LF - 1 x 6.5" carbon ring cone; coaxial HF - 1 x 1.25" exit compression driver
Operating Range: 90 Hz - 16 kHz
Sensitivity (1W/1m): 94 dB
Power Handling: 150W continuous @ 8 ohms
Continuous Max Output: 117 dB (123 dB Peak)
70V/100V Autoformer: 120W, 60W, 30W, 15W (@ 70V only)
Nominal Beamwidth (H x V): 100° x 100° (conical)
Finish: Light Grey or Black ABS matte plastic, paintable with dual-layer powder-coated steel with NeverWet™ treated grille
Dimensions (H x W x D): 9.0" x 10.2" x 10.2" (229 x 258 x 259 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
