R.15COAXB 6.5" 2-Way Coaxial Loudspeaker Black

« return to previous page

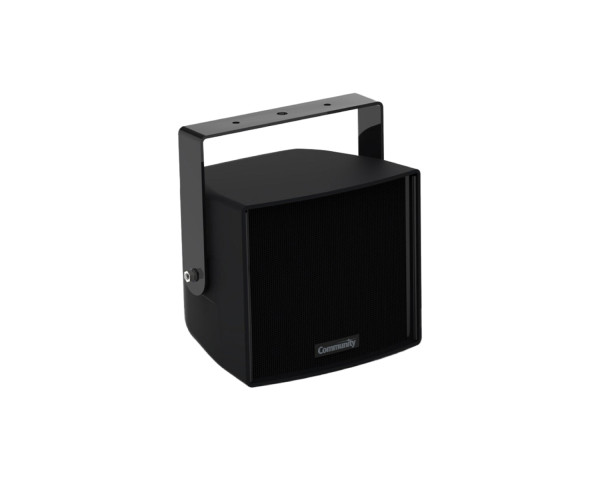

Community R.15COAXB 6.5 2-Way Coaxial Loudspeaker Black - Main Image
Price:
RRP: £561.60 inc VAT
Code:
COMR15COAXB
Manufacturer Code:
911.1235.900
Brand:
Community

Quantity required:

Main Features

  • 2-Way Coaxial Loudspeaker
  • 6.5" carbon ring cone
  • Premium music applications
  • Micro-size, efficient uniform high output
  • NeverWet™ treated grille, and included powder-coated mounting bracket
  • Finish: Black
Share:

R.15COAXB 6.5" 2-Way Coaxial Loudspeaker Black

The ultra-compact R.15 and R.35 models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. The R.15COAX and R.35COAX use identical 1.25-inch exit HF compression drivers, featuring Community’s exclusive Tru-Phase™ phase plug and Carbon Ring Cone Technology™. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, non-resonant low frequency reproduction, while identical voicing ensures a uniform listening experience.

Product Features

  • 2-Way Coaxial Loudspeaker
  • 6.5" carbon ring cone
  • Premium music applications
  • Micro-size, efficient uniform high output
  • NeverWet™ treated grille, and included powder-coated mounting bracket
  • Finish: Black
  • 100°x100°, black
  • Excellent musicality and intelligibility, and low distortion in an extremely compact enclosure
  • Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
  • Hydrophobically-treated grille and LF driver cones, polymer HF diaphragm, and moisture-sealed crossover
  • 120 watt Autoformer (standard), selectable 8 ohm or 70/100 volt operation
  • Corrosion-resistant dual-layer powder-coated low-profile steel yoke and aluminum grille

Product Specifications

  • Transducers: LF - 1 x 6.5" carbon ring cone; coaxial HF - 1 x 1.25" exit compression driver
  • Operating Range: 90 Hz - 16 kHz
  • Sensitivity (1W/1m): 94 dB
  • Power Handling: 150W continuous @ 8 ohms
  • Continuous Max Output: 117 dB (123 dB Peak)
  • 70V/100V Autoformer: 120W, 60W, 30W, 15W (@ 70V only)
  • Nominal Beamwidth (H x V): 100° x 100° (conical)
  • Finish: Black ABS matte plastic, paintable with dual-layer powder-coated steel with NeverWet™ treated grille
  • Dimensions (H x W x D): 9.0" x 10.2" x 10.2" (229 x 258 x 259 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
