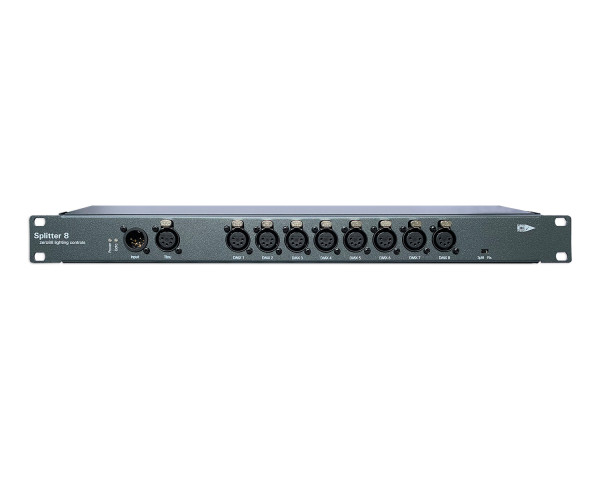

RDM Splitter 8 5-Pin DMX/RDM Splitter 1 In/8 Out 1U
The RDM Splitter 8 provides flexible DMX / RDM data distribution in a slim (1RU) 19” format, offering both splitter and “data fix” functionality in a single device. Splitter 8 is fully compatible with the latest RDM protocol, ensuring your DMX distribution network is ready to meet your future demands. Splitter 8 is appropriate for permanent installations or as a flexible, adaptable rental & touring tool.
“Fix Switch” is designed for systems where compatibility issues (or poorly designed fixtures) are causing flickering. When enabled, “Fix Switch” discards non-DMX data (including RDM) and adjusts the DMX timing to values more likely to work with fixtures that do not fully comply with the DMX standard.
The input is optically isolated, with a “Thru” connection for further expansion. The eight buffered outputs are protected against electrical faults. All connectors are Neutrik parts.
The RDM Splitter 8 is ideal for use alongside Gateway 4 and Gateway 8 to build a larger data distribution system.
Product Features
1 input, 8 output DMX / RDM splitting
Fully RDM compatible
“Fix Switch” for data-fixing
Opto Isolated Input
Electrically (transient) protected outputs
Desk Mount or 1RU 19” Form Factor
Neutrik 5pin XLR connectors
IEC power connector (94-230V AC)
CE compliant to all relevant standards
Product Specifications
Electrical
Supply Voltage: 100–230 VAC
Input Power (max): 25 W
Connections
AC Input: 1x IEC
Input: 1x XLR 5-pin
Thru: 1x XLR 5-pin
Output: 8x XLR 5-pin
Certification and Safety
Conformity CE, WEEE, RoHS
Physical
Operating temperature: 0–40°C (32-104°F)
Storage Tempature: -10–50°C (14–122°F)
Humidity: 5-80% non-condensing
Dimensions: 482.60 x 113 x 44.45 mm (19 x 4.45 x 1.75 in)
