Main Features
Compatible for both DMX-512A(RDM) and DMX-512(1990)
Compact plastic wall mount housing design
Signal In/Thru (3-pin connector) and 6 ports signal buffered output (3-pin connector)

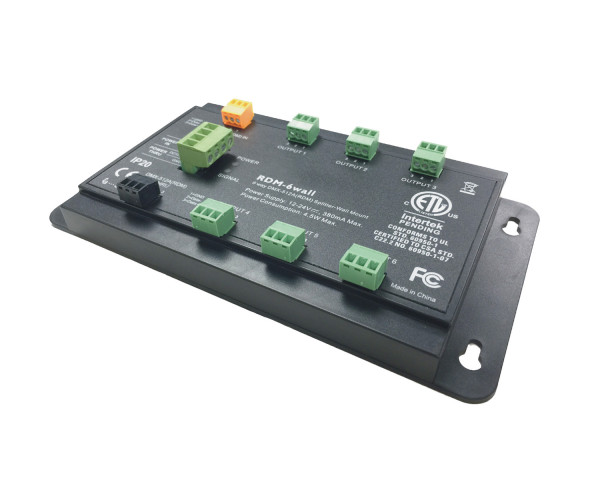

RDM-6WALL Wall Mount Signal Splitter Phoenix 1 In /1 Thru/ 6 Out
The 6-port wall mount RDM splitter RDM-6R is designed for system distribution of DMX-512A(RDM) network. Use as easy as the normal DMX-512 splitter, plug and play with 3-pin signal connectors.
Product Features
Compatible for both DMX-512A(RDM) and DMX-512(1990)
Compact plastic wall mount housing design
Signal In/Thru (3-pin connector) and 6 ports signal buffered output (3-pin connector)
Signal Line Out or Terminate push button
CE / ETL/cETL and FCC marked
Product Specifications
Electrical
Supply Voltage: 12–24VDC
Connections
DMX/RDM In: 1x 3-pin Phoenix Connector
DMX/RDM Out: 6x 3-pin Phoenix Connector
DMX/RDM Thru: 1x 3-pin Phoenix Connector
Power In/Thru: 1 x 4-pin Phoenix Connector
Certification and Safety
Approvals/Listings CE / ETL/cETL and FCC marked
Physical
Operating temperature: 0–35°C (32-95°F)
Humidity: 5-95% non-condensing
Storage Temperature: -40-70°C (-40-158°F)
Dimensions: 106 x 195 x 22 mm (4.17 x 7.7 x 0.87 in)
