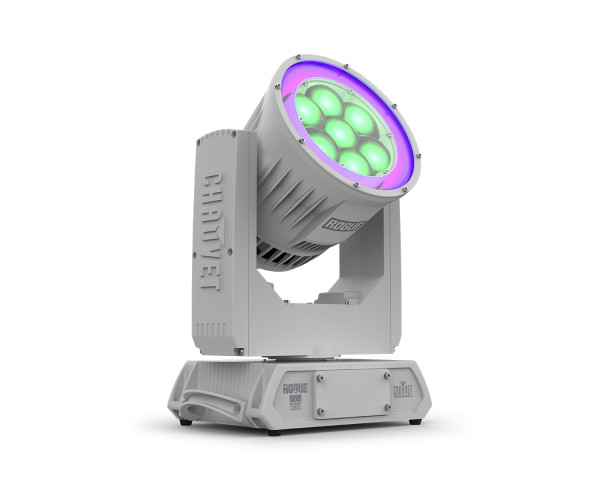

Rogue Outcast 1 BeamWash M Marine Moving Head RGB LED Ring IP66

Product Features

• Fully featured RGBW LED IP 66 rated yoke wash fixture with zoom and RGB LED ring
• C5M Paint application process and full aluminium construction for extended outdoor usage in and near marine environments
• Included display cover for extended outdoor usage in and near marine environments
• Stainless steel gland nuts for extended outdoor usage in and near marine environments
• 16-bit dimming of master dimmer as well as individual colours for smooth control of fades
• 12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities
• 5-pin DMX input/output connections 
• Prebuilt programs for outer LED ring with the ability to easily control dimming, rate, foreground and background colors
• Unique lens design for excellent colour blending and tight beam effects
• RDM-enabled for remote addressing and trouble shooting 
• Selectable PWM settings for camera operation
• Zoom Range: 3.9° to 55.3° for maximum coverage
• User selectable calibrated white for 7500 K at full output
• 6 distinct dimming modes for advanced control
• Easy-to-read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility 
• USB-C port for uploading software 

Product Specifications

Optical

• Light Source:  7 LEDs (quad-colour RGBW) 45W, (3 A), 50,000 hours life expectancy
• Light Source:  97 LEDs Outer Ring (tri-colour RGB) 0.2 W, (20 mA), 50,000 hours life expectancy.
• Colour Temperature (range):  2800 to 10000 K
• Beam Angle:  9.1° to 32.3°
• Field Angle:  11.2° to 49.2 °
• Zoom Range:  3.9° to 55.3°
• Zoom Angle:  11° to 63.2 °
• Lumens – Source:  5,900
• Lumens – Output:  4,073
• Illuminance (3.9°):  15,308 lux @ 5 m
• Illuminance (55.3°):  473 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt:  540°/260°
• Pan and Tilt Ranges:  180°, 360°, 540° Pan/90°, 180°, 260° Tilt.
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorised
• Strobe Rate:  0 to 20 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Curves:  4
• Built-in Automated Programs:  Yes
• Customizable Programs:  No
• Recall Custom Programs:  No

Connections

• Power Connection:  Edison (local) plug to Seetronic PowerKON IP65
• Data Connectors:  5-pin XLR
• Cable Length (power input):  5 ft (1.5 m)
• Cable Length (signal in/out):  5 ft (1.5 m)

Control

• Control Protocol:  DMX, RDM
• DMX Channels:  15, 24, 30, 64, 111 or 135
• Modes/Personalities:  6 personalities (15, 24, 30, 64, 111, 135)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
• Power and Current:  385 W, 3.25 A @ 120 V, 60 Hz
• Power and Current:  376 W, 1.92 A @ 208 V, 60 Hz
• Power and Current:  372 W, 1.69 A @ 230 V, 50 Hz
• Fuse Size:  8A, 250 V

Certifications / Qualifications

• CE, MET, FCC, FCC, UKCA
• IP Rating:  IP66, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc):  80° C / 176° F
• Maximum Ambient Temperature (ta) 45° C / 113° F

Construction / Physical

• Dimensions:  11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
• Weight:  20.2 lb (9.16 kg)
• Exterior Colour:  White
• Housing Material:  Aluminium

What's in the Box?

• Rogue Outcast 1 BeamWash M
• 2 Omega brackets with mounting hardware ( 2 Allen Key bolts)
• Display cover
