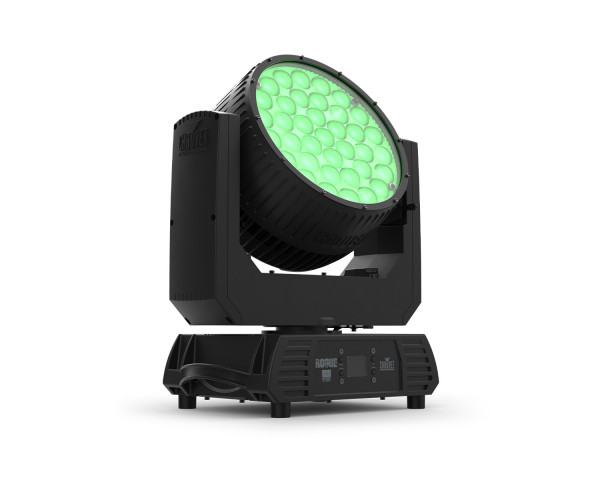

Rogue Outcast 3X Wash Moving Head 37x25W RGBW LEDs IP65

Product Features

• Fully-featured IP65 RGBW LED yoke wash fixture with LED zone control, zoom, durable, and lightweight aluminium/magnesium alloy body.
• 16-bit dimming of master dimmer, as well as individual colours for smooth control of fades 
• 37 RGBW LEDs, 25 W each
• 5-pin DMX input/output connections 
• 9 zones of LED control for pixel mapping control
• Fast/ smooth pan and tilt movement 
• RDM-enabled for remote addressing and trouble shooting 
• Selectable PWM options for camera operation
• Easy-to-read OLED display with simple, effective menu options
• User-selectable calibrated white for 7500 K at full output
• 6 distinct dimming modes for advanced control
• Easy-to-read OLED display with simple and effective menu options 
• Simple and complex DMX channel profiles for programming versatility 
• USB-C port for uploading software 

Product Specifications

Optical

• Light Source:  37 LEDs (quad-colour RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Colour Temperature (range):  2800 to 10000 K
• Beam Angle:  9.3° to 33.9°
• Field Angle:  11.6° to 49.5°
• Cutoff angle:  13.1° to 62.6°
• Zoom Angle:  9.3° to 62.6°
• Lumens – Source:  17,000
• Lumens – Output:  13,440
• Illuminance (9.3°) :  18,260 lux @ 5 m
• Illuminance (62.6°):1,556 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  180°, 360°, 540° Pan/90°, 180°, 230° Tilt.
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorised
• Strobe Rate:  0 to 25 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Curves:  4
• Built-in Automated Programs:  Yes
• Customizable Programs:  No
• Recall Custom Programs:  No

Connections

• Power Connection:  Edison (local) plug to Seetronic PowerKON IP65
• Power Input:  Seetronic PowerKON IP65
• Power Output:  Seetronic PowerKON IP65
• Data Connectors:  5-pin XLR
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  DMX, RDM
• DMX Channels:  21, 62, 71, 107
• Modes/Personalities:  4 personalities

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  2 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
• Power and Current:  711 W, 5.98 A @ 120 V, 60 Hz
• Power and Current:  701 W, 3.40 A @ 208 V, 60 Hz
• Power and Current:  695 W, 3.07 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC, FCC, UKCA
• IP Rating:  IP65, temporary outdoor/wet use
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions:  15.59 x 11.73 x 17.20 in (396 x 298 x 437 mm)
• Dimensions (shipping size):  23.62x 14.17 x 18.70 in (600 x 360 x 475)
• Weight:  38.2 lb. (17.38kg)
• Exterior Colour:  Black
• Housing Material:  High-impact flame-retardant polymer.

What's in the Box?

• Rogue Outcast 3X Wash
• Seetronic PowerKon IP65 power cord
• 2 x 140D Omega brackets with mounting hardware
