S2.4BX Lapel Radio Mic System 2.4GHz (S2.4RX1 + S2.4BTX)

« return to previous page

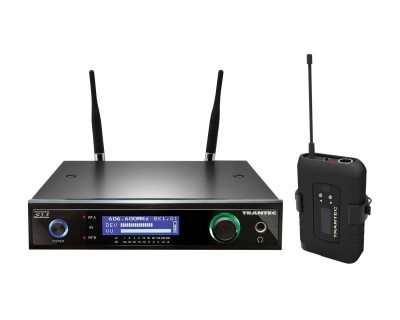

Trantec S2.4BX Lapel Radio Mic System 2.4GHz (S2.4RX1 + S2.4BTX) - Main Image
Trantec S2.4BX Lapel Radio Mic System 2.4GHz (S2.4RX1 + S2.4BTX) - Image 1
Trantec S2.4BX Lapel Radio Mic System 2.4GHz (S2.4RX1 + S2.4BTX) - Image 2
Trantec S2.4BX Lapel Radio Mic System 2.4GHz (S2.4RX1 + S2.4BTX) - Image 3
Trantec S2.4BX Lapel Radio Mic System 2.4GHz (S2.4RX1 + S2.4BTX) - Image 4
Price:
RRP: £234.00 inc VAT
Code:
TRAS24BX
Manufacturer Code:
S2.4-BX
Brand:
Trantec

Quantity required:

Main Features

  • Beltpack requires to be a 3.5mm thread mini jack connection, NOT the standard LP2, SJ33, SJ66 as those will not work without being adapted.
  • Wireless beltpack and receiver for use with lapel microphones
  • Operate on 100% free 2.4 GHz frequency
  • Choose from up to 16 channels
  • Receiver features LCD screen for simple programming
  • Beltpack uses 2 AA batteries, 1.5v
  • Operating time approximately 5 hours
Share:

S2.4BX Beltpack System 2.4 GHz

The S2.4-BX is a single channel 2.4GHz ISM Digital Microphone Wireless system with up to 16 selectable channels to choose from. It includes one Beltpack Transmitter and one Single Receiver with LCD display.

Product Features

  • Beltpack requires to be a 3.5mm thread mini jack connection, NOT the standard LP2, SJ33, SJ66 as those will not work without being adapted.
  • Wireless beltpack and receiver for use with lapel microphones
  • Operate on 100% free 2.4 GHz frequency
  • Choose from up to 16 channels
  • Receiver features LCD screen for simple programming
  • Beltpack uses 2 AA batteries, 1.5v
  • Operating time approximately 5 hours

Product Specifications

Receiver

  • Carrier Frequency:  2.404-2.474GHz
  • Available Channels:  16
  • Band Range:  2mHz
  • Dynamic Range:  85dB
  • Total Harmonic Distortion:  <0.1%
  • Power Supply:  DC17V
  • Power Consumption:  2W
  • Signal to Noise Ratio:  >95dB
  • Receiving Sensitivity:  -80dBm

Beltpack Transmitter

  • RF Carrier Power:  10mW
  • Modulation System:  GFSK
  • Ultraharmonics:  <20dB
  • Power Supply:  2 x AA batteries
  • Battery Life:  Approx 5 hours
