S5.5L True Diversity Beltpack System Without Mic 24Ch CH38-41

« return to previous page

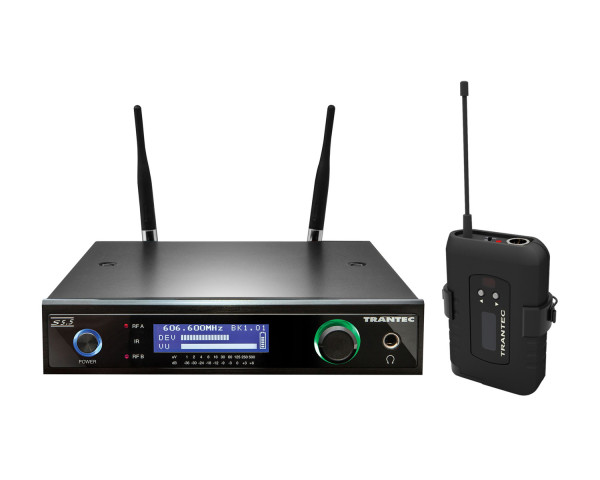

Trantec S5.5L True Diversity Beltpack System Without Mic 24Ch CH38-41 - Main Image
Trantec S5.5L True Diversity Beltpack System Without Mic 24Ch CH38-41 - Image 1
Trantec S5.5L True Diversity Beltpack System Without Mic 24Ch CH38-41 - Image 2
Trantec S5.5L True Diversity Beltpack System Without Mic 24Ch CH38-41 - Image 3
Price:
RRP: £714.00 inc VAT
Code:
TRAS55B38
Manufacturer Code:
S5.5-BA-EB GG1QO
Brand:
Trantec

Quantity required:

Main Features

  • 24 simultaneous channels per bank
  • Software monitoring/programming
  • Automatic frequency scanning
  • Triple-squelch
  • Full-metal housing
  • No Microphone Included
Share:

S5.5L True Diversity Beltpack System Without Mic 24Ch CH38-41

The S5.5 system was developed for professional stage use. The experience of many professional users has been incorporated into the further development of this series, so that the system leaves hardly anything to be desired.

The S5.5 system with up to 24 simultaneously operable channels is ideally suited. With infrared synchronisation, even a large system can be quickly configured. The true diversity receivers ensure reliable reception so that the user can move around without restrictions. This can also be tested before an event with the help of the software, which checks the radio connection with the so-called RF Walk Test in the application area.

Product Features

Receiver

  • 24 simultaneous channels per bank
  • Software monitoring/programming
  • Automatic frequency scanning
  • Triple-squelch
  • Full-metal housing
  • LCD screen
  • Other features: Infrared sync, USB port, EQ, phase reversal, mic/line switch, headphone output, BNC antenna inputs, adjustable triple-squelch

Bodypack

  • LCD screen
  • Battery status LED
  • Detachable antenna
  • Infrared sync
  • 10-step gain
  • 1x AA battery for about 10 hours of continuous use
  • Belt clip

Product Specifications

Receiver Specifications

  • Receiving frequency:  854 - 865 MHz
  • Selectable frequencies:  440
  • Diversity principle:  True diversity (dual receiver)
  • Antenna inputs:  2 x BNC (50 Ω)
  • Frequency response:  60 Hz - 20 kHz
  • Audio output:  XLR balanced (mic/line selectable), ¼“ jack unbalanced
  • Finish:  Metal
  • Dimensions:  210 x 46 x 210 mm (W x H x D)
  • Weight:  1.3 kg

Bodypack Specifications

  • Power source:  Battery 1x AA type, Alkaline
  • Selectable frequencies:  1,400
  • Audio input:  TA4 (Mini-XLR, 4-pin.; self-locking)
  • Finish:  Metal, silver metallic, black
  • Dimensions:  55 x 80 x 22 mm (W x H x D)
  • Weight:  140 g
