S4.10RX UHF Receiver Excluding Power Supply CH70

« return to previous page

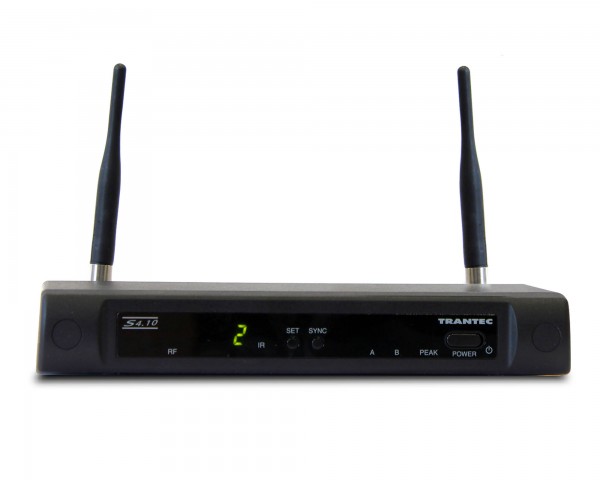

Trantec S4.10RX UHF Receiver Excluding Power Supply CH70 - Main Image
Price:
RRP: £202.80 inc VAT
Code:
TRAS410RX
Manufacturer Code:
S4.10-RXA-EB-GD4
Brand:
Trantec

Quantity required:

Main Features

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED's show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
Share:

S4.10-RXA-EBGD4 Diversity Receiver Ch 70

Channel 70 diversity receiver for the S4.10 Series.

Product Features

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers

Product Specifications

General

  • Diversity Reception:  Antenna Diversity
  • Sensitivity:  10uV at 45dBA, S/N
  • Squelch:  Tone SQ, Carrier SQ, Noise SQ
  • Audio Frequency Response:  50Hz - 1.5kHz
  • Audio Output Level (Max.):  Balanced (XLR socket): -20dBu Unbalanced(1/4" jack socket): 10dBu

Physical & Dimensions

  • Power Supply:  12 VDC 500mA
  • Dimensions:  215(W) x 39(H) x 102(D)mm (excluding antenna and BNC)
  • Weight:  480g
