SixPar 200WMG Marine PAR Fixture 12x 12W RGBAW+UV LEDs IP65 White

« return to previous page

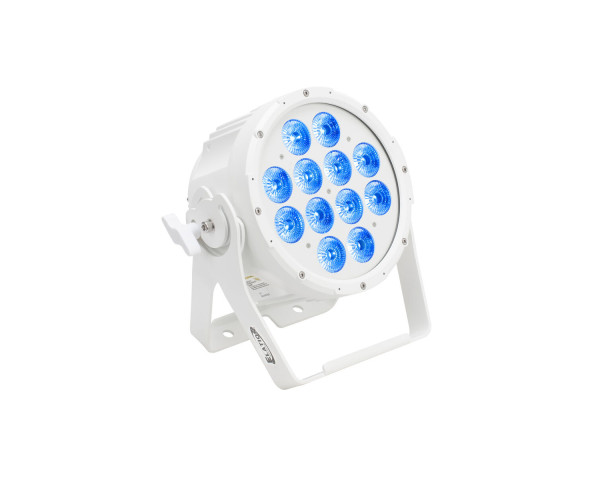

Elation SixPar 200WMG Marine PAR Fixture 12x 12W RGBAW+UV LEDs IP65 White - Main Image
Elation SixPar 200WMG Marine PAR Fixture 12x 12W RGBAW+UV LEDs IP65 White - Image 1
Elation SixPar 200WMG Marine PAR Fixture 12x 12W RGBAW+UV LEDs IP65 White - Image 2
Elation SixPar 200WMG Marine PAR Fixture 12x 12W RGBAW+UV LEDs IP65 White - Image 3
Elation SixPar 200WMG Marine PAR Fixture 12x 12W RGBAW+UV LEDs IP65 White - Image 4
Price:
RRP: £642.00 inc VAT
Code:
ELA0326
Manufacturer Code:
1621000073
Brand:
Elation

Quantity required:

Main Features

  • IP65 Outdoor Rated Par Luminaire
  • Special White Marine Grade Exterior Coating
  • Rugged Die-Cast Aluminium Exterior with Dual Yoke / Floor Stand
  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 23° Beam Angle
  • Proprietary IP Rated Power and Data In/Out Cables Attached
Share:

SixPar 200WMG Marine PAR Fixture 12x 12W RGBAW+UV LEDs IP65 White

The IP65 outdoor rated SIXPAR 200WMG includes the same features as the standard SIXPAR 200IP model but with a special added White Marine Grade exterior coating designed for the marine/coastal environment installations. Featuring (12) 12W 6-in-1 RGBAW+UV LEDs producing a 23° beam angle, internal colour and colour chase macros, electronic strobe and variable dimming curve modes, manual and DMX-512 control, RDM (remote device management) support, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminium white marine grade coated exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).

Product Features

  • IP65 Outdoor Rated Par Luminaire
  • Special White Marine Grade Exterior Coating
  • Rugged Die-Cast Aluminium Exterior with Dual Yoke / Floor Stand
  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 23° Beam Angle
  • 395nm UV Wavelength
  • Electronic Strobe and Variable Dimming Curve Modes
  • Manual and DMX-512 Control
  • RDM (Remote Device Management) Support
  • Multiple Unit Power Linking
  • Proprietary IP Rated Power and Data In/Out Cables Attached
  • Optional Extended Length Proprietary IP Rated Power and Data Linking Cables and In/Out Adapters Available

Product Specifications

Source

  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 hour average LED life

Photometric Data

  • 2,500 LUX 232 FC @ 3m (9.8’)

Effects

  • Electronic strobe
  • Variable dimming curves modes
  • Internal colour and colour chase macros

Colour

  • RGBAW+UV multi-chip LEDs

Control / Connections

  • Manual and DMX-512 control
  • (4) DMX channel modes (6 / 7 / 8 / 12)
  • (4) button touch LCD menu display
  • Proprietary IP rated locking 3pin XLR DMX In/Out cables attached
  • Proprietary IP rated locking 3pin power In/Out cable attached
  • With wired digital communication network

Electrical / Thermal

  • AC 110-250V - 50/60Hz
  • 150W max power consumption
  • Multiple unit power linking
  • -15°C to 45°C (5°F to 113°F)
  • UV wavelength: 395nm

Size / Weight

  • Length:  313mm (12.3”)
  • Width:  157mm (6.2”)
  • Vertical height:  300mm (11.8”)
  • Weight:  5.7 kg (12.6 lbs.)

What's in the Box?

  • Male CEE 7/7 to IP Female Power Cable 2m (6.6 ft.)
  • Male 5pin XLR to IP Female DMX Input Cable 1m (3.3 ft)
  • Female 5pin XLR to IP Male DMX Output Cable 1m (3.3 ft)
