SixPar 300WMG HW Marine PAR 12x12W RGBAW+UV LED IP65 Wired White

« return to previous page

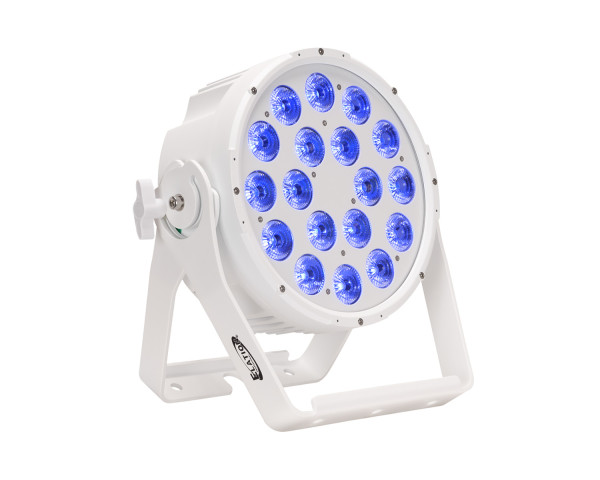

Elation SixPar 300WMG HW Marine PAR 12x12W RGBAW+UV LED IP65 Wired White - Main Image
Elation SixPar 300WMG HW Marine PAR 12x12W RGBAW+UV LED IP65 Wired White - Image 1
Elation SixPar 300WMG HW Marine PAR 12x12W RGBAW+UV LED IP65 Wired White - Image 2
Elation SixPar 300WMG HW Marine PAR 12x12W RGBAW+UV LED IP65 Wired White - Image 3
Price:
RRP: £756.00 inc VAT
Code:
ELA0331
Manufacturer Code:
1236100180
Brand:
Elation

Quantity required:

Main Features

  • IP65 Outdoor Rated Par Luminaire
  • Special White Marine Grade Exterior Coating
  • Rugged Die-Cast Aluminium Exterior with Dual Yoke / Floor Stand
  • (18) 12W 6-in-1 RGBAW+UV LEDs
  • 23° Beam Angle
  • Hard Wired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached
Share:

SixPar 300WMG HW Marine PAR 12x12W RGBAW+UV LED IP65 Wired White

The IP65 outdoor rated SIXPAR 300WMG HW includes the same features as the standard SIXPAR 300IP model but with a special added White Marine Grade exterior coating and Hard Wired (bare wire) IP-rated power/data combo in/out cables attached, designed for permanent marine/coastal environment installations. Featuring (18) 12W 6-in-1 RGBAW+UV LEDs producing a 23° beam angle, internal colour and colour chase macros, electronic strobe and variable dimming curve modes, manual and DMX-512 control, RDM (remote device management) support, dual yoke / floor stand, rugged die-cast aluminium white marine grade coated exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).

Product Features

  • IP65 Outdoor Rated Par Luminaire
  • Special White Marine Grade Exterior Coating
  • Rugged Die-Cast Aluminium Exterior with Dual Yoke / Floor Stand
  • (18) 12W 6-in-1 RGBAW+UV LEDs
  • 23° Beam Angle
  • 395nm UV Wavelength
  • Electronic Strobe and Variable Dimming Curve Modes
  • Manual and DMX-512 Control
  • RDM (Remote Device Management) Support
  • Hard Wired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached

Product Specifications

Source

  • (18) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 hour average LED life

Photometric Data

  • 24,500 LUX 2,276 FC @3.3’ (1m) (15° Full ON)

Effects

  • Electronic strobe
  • Variable dimming curves modes
  • Internal colour and colour chase macros

Control / Connections

  • Manual and DMX-512 control
  • (4) DMX channel modes (6 / 7 / 8 / 12)
  • (4) button touch LCD menu display
  • Hard wired (bare wire) IP rated power/data combo In/Out cables attached
  • With wired digital communication network



Electrical / Thermal

  • AC 110-250V - 50/60Hz
  • 220W max power consumption
  • -15°C to 45°C (5°F to 113°F)
  • UV wavelength:  395nm

Size / Weight

  • Length:  365mm (14.4”)
  • Width:  125mm (4.9”)
  • Vertical height:  365mm (14.4”)
  • Weight:  9.5 kg (21.0 lbs.)
