SLXD2/B58 SLXD2 Handheld Transmitter (BETA58A) Capsule K59 CH38

« return to previous page

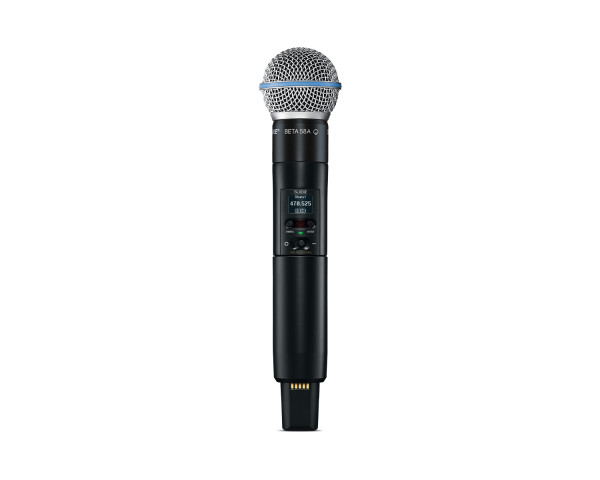

Shure SLXD2/B58 SLXD2 Handheld Transmitter (BETA58A) Capsule K59 CH38 - Main Image
Shure SLXD2/B58 SLXD2 Handheld Transmitter (BETA58A) Capsule K59 CH38 - Image 1
Shure SLXD2/B58 SLXD2 Handheld Transmitter (BETA58A) Capsule K59 CH38 - Image 2
Price:
RRP: £312.00 inc VAT
Code:
SHUSLXD2B58K59
Manufacturer Code:
SLXD2/B58=-K59
Brand:
Shure

Quantity required:

Main Features

  • K59 Band: 606-650 MHz
  • SLXD2 Handheld Transmitter with Dynamic Supercardioid BETA 58A Capsule
  • Interchangeable Shure microphone capsule
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
Share:

SLXD2/B58 SLXD2 Handheld Transmitter with BETA58A Capsule K59

SLX-D® Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

The SLXD2/B58, featuring the Beta®58A interchangeable microphone capsule is the choice for confident speech presentation and vocal performance - from lecture halls to live entertainment.

Product Features

  • K59 Band: 606-650 MHz
  • SLXD2 Handheld Transmitter with Dynamic Supercardioid BETA 58A Capsule
  • Interchangeable Shure microphone capsule
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • Operating range of 100 m (300 ft.)
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.
  • Rugged metal construction

Product Specifications

System Specifications

  • RF
    • RF Carrier Frequency Range:  K59 (606 - 650MHz)
    • Working Range:  100 m (328 ft)
    • RF Tuning Step Size:
      • JB Band:  125 kHz
      • All Other Bands:  25 kHz
      • Varies by region.
    • Image Rejection:  >70 dB typical
    • RF Sensitivity:  −97 dBm at 10-5 BER
  • Audio
    • Latency:  3.2 ms
    • High-Pass/Low Cut Filter:  150 Hz, –12 dB/octave Note: factory default is for the HPF to be off
    • Audio Frequency Response:  20 Hz–20 kHz (+1, −2 dB)
    • Audio Dynamic Range, A-weighted, 20 Hz–20 kHz, typical:  118 dB @1% THD
    • Total Harmonic Distortion:  <0.02%
    • System Audio Polarity:
      • XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
      • TRS: Postive pressure on microphone diaphragm produces positive voltage on the  tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
    • Mic Offset Range:  0 to 21 dB (in 3 dB steps)
  • Temperature Range
    • Operating Temperature Range:  0 °F to 122 °F (−18 °C to 50 °C)
    • Storage Temperature Range:  −20 °F to 165 °F (−29 °C to 74 °C)

SLXD2 Specifications

  • Battery Type:  Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions:  1.46 × 6.93 in (37.1 × 176 mm)
  • Weight:  5.2 oz. (147 g)
  • Housing:  Aluminium
  • Audio Input
    • Configuration:  Unbalanced
    • Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp) Note: Dependent on Microphone Type
  • RF Output
    • Antenna Type:  Integrated Single-Band Helical
    • Occupied Bandwidth:  <200 kHz
    • Modulation Type:  Shure Proprietary Digital
    • Power:  1 mW/10 mW
