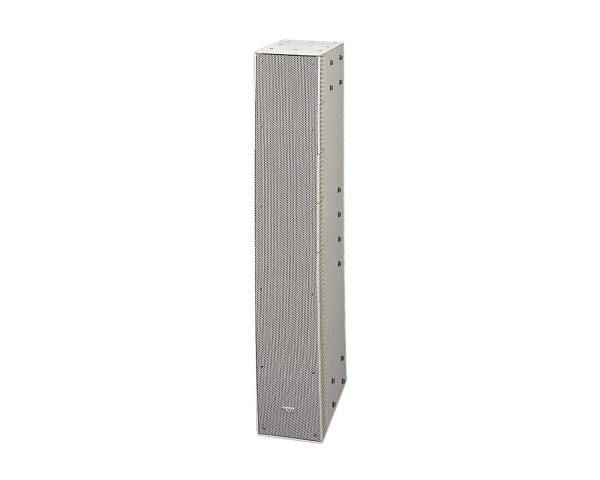

SRS4S 2-Way Line Array Column Speaker 8x4

Price:: RRP: £1,378.80 inc VAT
Code:: TOASRS4S
Manufacturer Code:: SR-S4S
Brand:: TOA

Main Features

2-way line array speaker with 8 x 10 cm (4“) woofers and 24 high-frequency drivers, installed vertically
Sync-Drive technology creates an ideal line sound source
Clear sound with reduced attenuation over distance
Targeting the speaker' beam to the listener area reduces reflections from floor and ceiling and reduces the danger of feedback
Bi-amp or single amp drive possible
Wide variety of mounting brackets available

SRS4S 2-Way Line Array Column Speaker 8x4" LF 24x1" HF White

The SR-S4S is a two-way line array speaker ideal for short distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601 Matching transformer.

Product Features

2-way line array speaker with 8 x 10 cm (4“) woofers and 24 high-frequency drivers, installed vertically
Sync-Drive technology creates an ideal line sound source
Clear sound with reduced attenuation over distance
Targeting the speaker' beam to the listener area reduces reflections from floor and ceiling and reduces the danger of feedback
Splashproof versions (SR-S4LWP/SR-S4SWP)
Bi-amp or single amp drive possible
Wide variety of mounting brackets available

Product Specifications

Frequency response: 70 Hz - 20 kHz
Connection
- M5 screw terminal, distance between barriers: 12.2 mm and Neutrik NL4MP x 2 (usable cable connector: Neutrik NL4FC)
Sensitivity (1 W, 1 m): 93 dB
Speaker component
- Low frequency: 10 cm cone-type × 8
- High frequency: 2.5 cm balanced dome-type × 24
Rated impedance: 8 Ω
Crossover frequency: 4 kHz
Rated Input (Low Impedance): Continuous program: 600 W
Finish: MDF, paint, off-white (RAL 9010 or equivalent)
Dimensions: 160 x 892 x 303 mm (W x H x D)
Weight: 16 kg
