STAGEPAS 100 6.5

« return to previous page

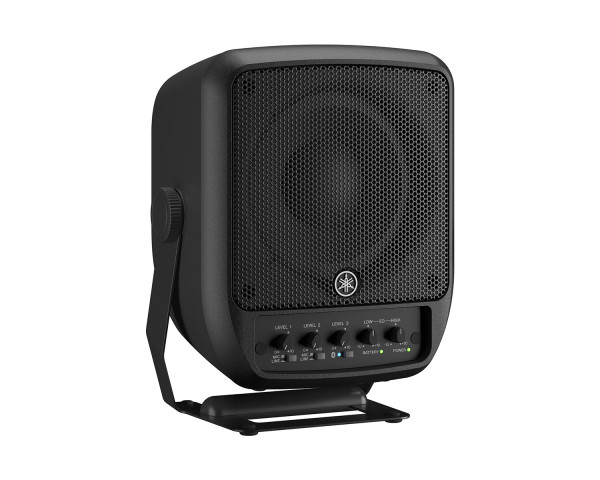

Yamaha STAGEPAS 100 6.5 Portable PA Loudspeaker System 100W - Image 1

Yamaha STAGEPAS 100 6.5 Portable PA Loudspeaker System 100W - Image 2

Yamaha STAGEPAS 100 6.5 Portable PA Loudspeaker System 100W - Image 3

Yamaha STAGEPAS 100 6.5 Portable PA Loudspeaker System 100W - Image 4

Yamaha STAGEPAS 100 6.5 Portable PA Loudspeaker System 100W - Image 5

Price:: RRP: £465.60 inc VAT
Code:: YAMSP100
Manufacturer Code:: STAGEPAS100
Brand:: Yamaha

Main Features

100 W Class-D amplifier
1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
3-channel mixer (2 monaural mic/line + 1 line)
Equipped with a 2-band master EQ
Compatible with Hi-Z input (Channel 2 only)
Equipped with mix-out

STAGEPAS 100 6.5" Portable PA Loudspeaker System 100W

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery.

Product Features

100 W Class-D amplifier
1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
3-channel mixer (2 monaural mic/line + 1 line)
Equipped with a 2-band master EQ
Compatible with Hi-Z input (Channel 2 only)
Equipped with mix-out
Carrying handle doubles as an adjustable stand
Compatible with audio accompaniment over Bluetooth
Optional carrying bag (BAG-STP100) available for convenient transport

Product Specifications

Type: 2-way Bi-amp Powered Speaker with mixer
Inputs: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
Output: XLR3-32 (INPUT 1-3 mix)
Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
Mixing channels: 3
Input channel functions: Hi-Z: CH2
Output channel functions: 2 Band EQ
General specifications
Speaker type: Coaxcial speaker with compression driver
Frequency range (-10): 70 Hz – 20 kHz
Coverage area: H90ﾟ x V90ﾟ
Crossover: 1.8 kHz (FIR-X)
Maximum output level (1m; on axis): 120 dB SPL *1
Components: LF 6.5" Cone, 1.7" voice coil – HF 1" throat compression driver, 1.4" voice coil
Amplifier class: D
Power rating: 100 W
Dynamic: LF:93W, HF:7W
Cooling: Natural convection (no fan)
Power consumption: 10 W (Idle), 30 W (1/8 power)
Power requirements: 100-240 V 50/60 Hz
Cabinet material: Plastic
Handle: Bottom x1 (Rotatable)
Flying and mounting hardware: 1 × 3/8", depth 12 mm (centre of handle)
Dimensions (W x H x D): 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
Weight: 5.2kg (11.5ibs), without AC adaptor
Accessories: Power cord x 1, AC adaptor (PA-500) x 1
