STAGEPAS 200BTR 8" Portable PA Loudspeaker System +Battery 180W

« return to previous page

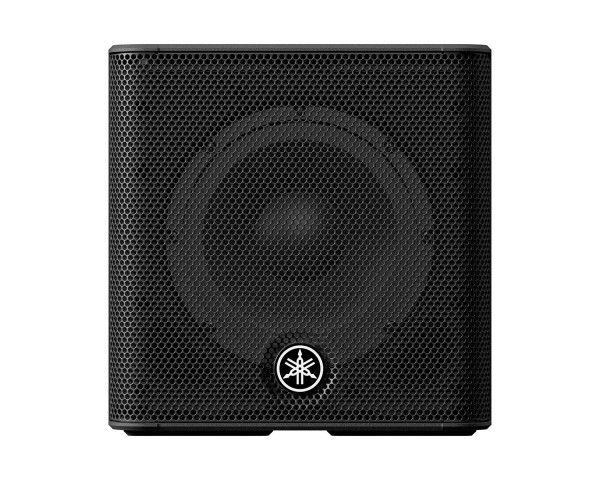

Yamaha STAGEPAS 200BTR 8 Portable PA Loudspeaker System +Battery 180W - Main Image
Yamaha STAGEPAS 200BTR 8 Portable PA Loudspeaker System +Battery 180W - Image 1
Yamaha STAGEPAS 200BTR 8 Portable PA Loudspeaker System +Battery 180W - Image 2
Yamaha STAGEPAS 200BTR 8 Portable PA Loudspeaker System +Battery 180W - Image 3
Price:
RRP: £939.60 inc VAT
Code:
YAMSP200BTR
Manufacturer Code:
STAGEPAS200BTR
Brand:
Yamaha

Quantity required:

Main Features

  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver
  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus



Share:

STAGEPAS 200BTR 8" Portable PA Loudspeaker System +Battery 180W

A portable PA system equipped with a 180 W power amp, coaxial compression driver with 1.4” voice coil HF and 8” cone LF, a 5-channel digital mixer, and sold together with a high-capacity lithium-ion battery.

Product Features

  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver
  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
  • Hi-Z input
  • Equipped with link-out/monitor out
  • Supplied rubber stand allows inclining at 30 or 60 degrees
  • Compatible with audio streaming via Bluetooth
  • Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
  • Optional BTR-STP200 battery included
  • Optional CASE-STP200 carry case for convenient carrying



Product Specifications

  • Type:  2-way Bi-amp Powered Speaker with mixer
  • Mixing channels:  5 (Mono x3 + Stereo x1)
  • Input channel functions:  Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
  • Output channel functions:  MODE (SPEECH/MUSIC/CLUB)
  • Input:  Mono x3 (mic/line) + Stereo/Mono x1 (line)
  • Output:  Monitor/Link out x1
  • Bluetooth:  Ver.5.0, A2DP (SBC, AAC), Class 1
  • Control and others:  STAGEPAS Controller (iOS/Android app)
  • DSP:  SPX digital reverb (4 program, parameter control), delay, chorus

General specifications

  • Speaker type:  Coaxcial speaker with compression driver
  • Frequency range (-10):  60 Hz – 20 kHz
  • Coverage area:  H90 x V90
  • Crossover:  2.0 kHz
  • Maximum output level (1m; on axis):  125 dB SPL *1
  • Components:  LF 8" Cone, 2.0" voice coil– HF 1" throat compression driver, 1.4" voice coil
  • Amplifier class:  D
  • Power rating:  180 W
  • Dynamic:  LF:150W,  HF:30W
  • Cooling:  Natural convection (no fan)
  • Power consumption:  10 W (Idle), 20 W (1/8 power)
  • Power requirements:  100-240 V 50/60 Hz or 29.6 Vdc *2
  • Type:  Rechargeable Lithium ion battery pack
  • Capacity:  79.92 Wh (2700 mAh, 29.6 V)
  • Operating time:  Maximum 10 hours, 1/16 power continuous 8 hours
  • Charging time:  Approx. 4 hours
  • Cabinet material:  Plastic (ABS)
  • Handle:  Top x1
  • Pole socket:  Φ35 mm x1 (Side)
  • Floor monitor angle:  30° or 60°
  • Dimensions (W x H x D):  300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
  • Weight:  12.5 kg (27.6 lbs) (Including battery)
  • Accessories:  Power cord x 1
