STAGEPAS 200 8" Portable PA Loudspeaker System 180W

« return to previous page

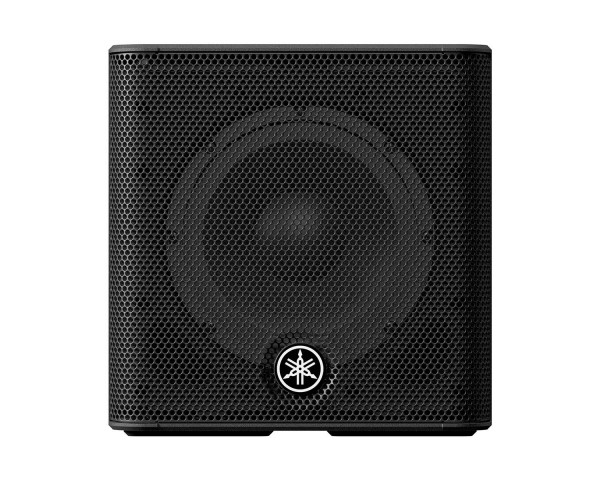

Yamaha STAGEPAS 200 8 Portable PA Loudspeaker System 180W - Main Image
Yamaha STAGEPAS 200 8 Portable PA Loudspeaker System 180W - Image 1
Yamaha STAGEPAS 200 8 Portable PA Loudspeaker System 180W - Image 2
Yamaha STAGEPAS 200 8 Portable PA Loudspeaker System 180W - Image 3
Yamaha STAGEPAS 200 8 Portable PA Loudspeaker System 180W - Image 4
Price:
RRP: £783.60 inc VAT
Code:
YAMSP200
Manufacturer Code:
STAGEPAS200
Brand:
Yamaha

Quantity required:

Main Features

  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver
  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
Share:

STAGEPAS 200 8" Portable PA Loudspeaker System 180W

A portable PA system equipped with a 180 W power amp, coaxial compression driver with 1.4” voice coil HF and 8” cone LF, a 5-channel digital mixer, and sold together with a high-capacity lithium-ion battery.

Product Features

  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver
  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
  • Hi-Z input
  • Equipped with link-out/monitor out
  • Supplied rubber stand allows inclining at 30 or 60 degrees
  • Compatible with audio streaming via Bluetooth
  • Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
  • Compatible with the optional BTR-STP200 battery
  • Optional CASE-STP200 carry case for convenient carrying

Product pecifications

  • Type:  2-way Bi-amp Powered Speaker with mixer
  • Mixing channels:  5 (Mono x3 + Stereo x1)
  • Input channel functions:  Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
  • Output channel functions:  Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
  • Input:  Mono x3 (mic/line) + Stereo/Mono x1 (line)
  • Output:  Monitor/Link out x1
  • Bluetooth:  Ver.5.0, A2DP (SBC, AAC), Class 1
  • Control and others:  STAGEPAS Controller (iOS/Android app)
  • DSP:  SPX digital reverb (4 program, parameter control), delay, chorus
  • General specifications
  • Speaker type:  Coaxcial speaker with compression driver
  • Frequency range (-10):  60 Hz – 20 kHz
  • Coverage area:  H90 x V90
  • Crossover:  2.0 kHz
  • Maximum output level (1m; on axis):  125 dB SPL *1
  • Components:  LF 8" Cone, 2.0" voice coil– HF 1" throat compression driver, 1.4" voice coil
  • Amplifier class:  D
  • Power rating:  180 W
  • Dynamic:  LF:150W,  HF:30W
  • Cooling:  Natural convection (no fan)
  • Power consumption:  10 W (Idle), 20 W (1/8 power)
  • Power requirements:  100-240 V 50/60 Hz or 29.6 Vdc *2
  • Cabinet material:  Plastic (ABS)
  • Handle:  Top x1
  • Pole socket:  Φ35 mm x1 (Side)
  • Floor monitor angle:  30° or 60°
  • Dimensions (W x H x D):  239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
  • Weight:  12.0 kg (26.5 lbs)
  • Accessories:  Power cord x 1
