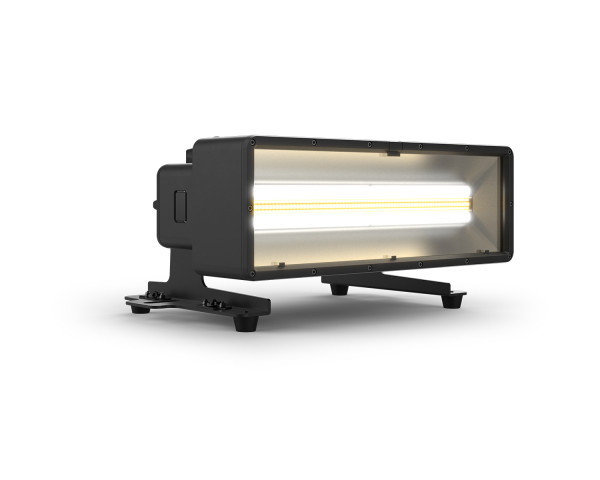

STRIKE Bolt 1C LED Blinder / Strobe with Smart Frost IP65

Product Features

• Intense, stackable strobe with added colour effects
• Rated IP65 for all-weather use
• Twin strobe tubes for intense strobe effects
• Single row of RGBA LEDs for colour block effects behind an integrated smart glass (electronic frost) filter
• Designed for rigging versatility with multiple hanging points, end-to-end connections, floor feet, and the ability to be rigged inline with STRIKE Array fixtures to create unique blinder/strobe arrays

Product Specifications

Optical

• Designed for rigging versatility with multiple hanging points, end-to-end connections, floor feet, and the ability to be rigged inline with Strike Array fixtures to create unique blinder/strobe arrays.
• Light Source:  392 LEDs, (CW) 1.5 W, 5660 K, 50,000 hours life expectancy
• Color Temperature (at full):  5692K
• CRI:  89.2
• Beam Angle (Combine):  77.5° x 55.8°
• Beam Angle (Plate):  82.7° x 73.3°
• Beam Angle (Beam):  77.7° x 54.7°
• Field Angle (Combine):  130.6° x 104.4°
• Field Angle (Plate):  139.7° x 120.3°
• Field Angle (Beam):  129.1° x 102.3°
• Lumens (Combined):  20,251
• Lumens (Plate):  693
• Lumens (Beam):  23,736
• Illuminance (Combined):  605 lux @ 5 m
• Illuminance (Plate):  17 lux @ 5 m
• Illuminance (Beam):  729 lux @ 5 m
• Selectable PWM:  1000 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz, 64,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Strobe Rate:  0 to 30 Hz
• Standalone Colour Mixing:  Yes
• Dim Modes:  4
• Built-in Automated Programs:  Yes

Connections

• Power Connection:  Edison (Local) plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Power Output:  Seetronic Powerkon IP65
• Data Connectors:  5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  DMX, RDM
• Modes/Personalities:  8 personalities (7, 10, 12, 16, 19, 32, 40, 53)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  4 units @ 120 V; 6 units @ 208 V; 8 units @ 230 V
• Power and Current:  329 W, 2.82 A @ 120 V, 60 Hz
• Power and Current:  326 W, 1.82 A @ 208 V, 60 Hz
• Power and Current:  323 W, 1.48 A @ 230 V, 50 Hz

Certifications / Qualifications

• IP Rating:  IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions:  14.96 x 8.39 x 11.81 in (380 x 213 x 300 mm)
• Weight:  19 lbs. (8.7 kg)
• Exterior Colour:  Black
• Housing Material:  Magnesium alloy

What's in the Box?

• STRIKE Bolt 1C
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware
