SUB 8008-AS 2x18" Active High-Power Subwoofer 2200W Black

« return to previous page

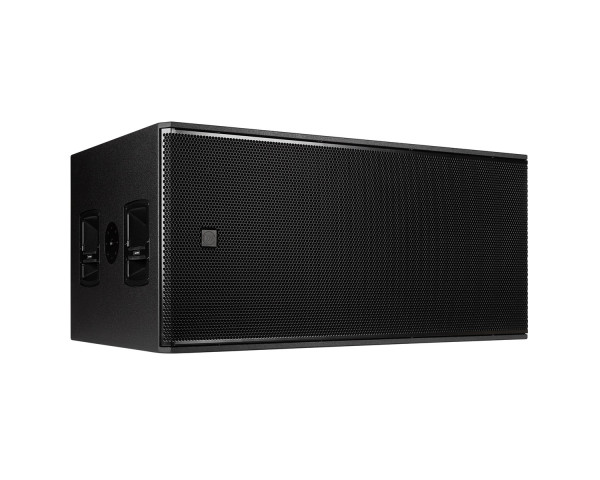

RCF SUB 8008-AS 2x18 Active High-Power Subwoofer 2200W Black - Main Image
RCF SUB 8008-AS 2x18 Active High-Power Subwoofer 2200W Black - Image 1
RCF SUB 8008-AS 2x18 Active High-Power Subwoofer 2200W Black - Image 2
RCF SUB 8008-AS 2x18 Active High-Power Subwoofer 2200W Black - Image 3
RCF SUB 8008-AS 2x18 Active High-Power Subwoofer 2200W Black - Image 4
RCF SUB 8008-AS 2x18 Active High-Power Subwoofer 2200W Black - Image 5
RCF SUB 8008-AS 2x18 Active High-Power Subwoofer 2200W Black - Image 6
RCF SUB 8008-AS 2x18 Active High-Power Subwoofer 2200W Black - Image 7
Price:
RRP: £2,973.60 inc VAT
Code:
RCFSUB8008
Manufacturer Code:
13000752
Brand:
RCF

Quantity required:

Main Features

  • Up to 137 dB Sound Pressure Level
  • 4400W Class-D Bi-Amplification
  • 30-120 Hz linear frequency response
  • 2 x 18" High Power Woofers
  • IP Rated Powercon TRUE1 TOP IN/OUT
  • 8 Crossover Presets and 4 Cardioid Presets
Share:

SUB 8008-AS 2x18" Bass Reflex Active Subwoofer 2200W

The SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling. Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.

Product Features

  • Up to 137 dB Sound Pressure Level
  • 4400W Class-D Bi-Amplification
  • 30-120 Hz linear frequency response
  • 2 x 18" High Power Woofers
  • IP Rated Powercon TRUE1 TOP IN/OUT
  • 8 Crossover Presets and 4 Cardioid Presets

Product Specifications

  • Acoustical Specifications
    • Frequency Response:  30 Hz ÷ 120 Hz
    • Max SPL @ 1m:  137 dB
  • Transducers
    • Woofer:  2 x 18'', 4.0'' v.c
  • Input/Output Section
    • Input signal:  bal/unbal
    • Input connectors:  XLR
    • Output connectors:  XLR
    • Input sensitivity:  -2 dBu/+4 dBu
  • Processor Section
    • Crossover Frequencies:  Selectable
    • Protections:  Thermal, Excurs., RMS
    • Limiter:  Soft Limiter
    • Controls:  Xover, Phase switch, Deep/Punch, Output Delay Setting
  • Power Section
    • Total Power:  4400 W Peak
    • Low frequencies:  4400 W Peak
    • Cooling:  Convection/Forced
    • Connections:  Powercon TRUE1 TOP IN/OUT
  • Standard Compliance
    • CE marking:  Yes
  • Physical Specifications
    • Cabinet/Case Material:  Plywood
    • Hardware:  2 x M20
    • Handles:  2 x side
    • Grille:  Steel
    • Colour:  Black
  • Size
    • Height:  550 mm / 21.65 inches
    • Width:  1180 mm / 46.46 inches
    • Depth:  700 mm / 27.56 inches
    • Weight:  80 kg / 176.37 lbs
  • Shipping Information
    • Package Height:  600 mm / 23.62 inches
    • Package Width:  1370 mm / 53.94 inches
    • Package Depth:  900 mm / 35.43 inches
    • Package Weight:  86 kg / 189.6 lbs
