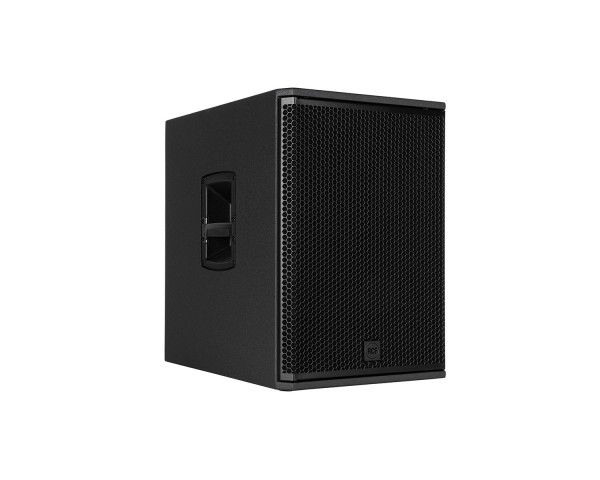

RCF SUB 905-AS MK3 15 Birch Ply Active Subwoofer with DSP 1100W Blk - Main Image
RCF SUB 905-AS MK3 15 Birch Ply Active Subwoofer with DSP 1100W Blk - Image 1
RCF SUB 905-AS MK3 15 Birch Ply Active Subwoofer with DSP 1100W Blk - Image 2
RCF SUB 905-AS MK3 15 Birch Ply Active Subwoofer with DSP 1100W Blk - Image 3
RCF SUB 905-AS MK3 15 Birch Ply Active Subwoofer with DSP 1100W Blk - Image 4
RCF SUB 905-AS MK3 15 Birch Ply Active Subwoofer with DSP 1100W Blk - Image 5
RCF SUB 905-AS MK3 15 Birch Ply Active Subwoofer with DSP 1100W Blk - Image 6
RCF SUB 905-AS MK3 15 Birch Ply Active Subwoofer with DSP 1100W Blk - Image 7
RCF SUB 905-AS MK3 15 Birch Ply Active Subwoofer with DSP 1100W Blk - Image 8
Price:
RRP: £1,346.40 inc VAT
Code:
RCFSUB905AS3
Manufacturer Code:
13000846
Brand:
RCF

Quantity required:

Main Features

  • 2200 W
  • 133 dB max SPL
  • 40 Hz - 120 Hz frequency response
  • 15" Woofer, 3.0" v.c.
  • Birch tour grade cabinet
  • Selectable gain, X-over, cardioid mode and time delay
Share:

SUB 905-AS MK3 15" Birch Ply Active Subwoofer with DSP 1100W Blk

The SUB 905-AS MK3 is a self-powered extended low-frequency subwoofer with internal DSP. Its compact cabinet houses a state-of-the-art 15" transducer featuring ceramic magnets and a 3.0” voice coil. The internal amplifier manages up to 2200W power output,, delivering sound pressure levels up to 133 dB. Proprietary Bass Motion Control processing provides extended linearity and remarkable sound integrity. Rear panel controls include presets, crossover frequency, and polarity selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is stackable and lightweight, ensuring quick set-ups and tear-downs. Built specifically for highly demanding applications, SUB 905-AS MK3 is the perfect workhorse for music professionals.

Product Features

  • 2200 W
  • 133 dB max SPL
  • 40 Hz - 120 Hz frequency response
  • 15" Woofer, 3.0" v.c.
  • Birch tour grade cabinet
  • Selectable gain, X-over, cardioid mode and time delay
  • Stereo XLR input, Stereo XLR signal output

Product Specifications

Acoustical Specifications

  • Frequency Response: 40 Hz ÷ 120 Hz
  • Max SPL: 133 dB

Transducers

  • Woofer:  15", 3.0" v.c

Input/Output Section

  • Input connectors: Stereo XLR
  • Output connectors: Stereo XLR
  • Input sensitivity: -2 dBu / + 4 dBu

Processor Section

  • Crossover frequencies: Selectable
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Gain,EQ, phase, xover, delay, cardioid

Amplifier Specifications

  • Total power: 2200 W Peak, 1100 W RMS
  • Low frequencies: 2200 W Peak, 1100 W RMS
  • Cooling: Convection
  • Connections: Powercon in/out

Cabinet

  • Cabinet Material:  Plywood
  • Handles: One Handle on each side
  • Pole Mount/Cap: Yes
  • Grille: steel with clothing
  • Colour: Black

Physical Specifications

  • Height:  590 mm / 23.23 inches
  • Width:  420 mm / 16.54 inches
  • Depth:  590 mm / 23.23 inches
  • Weight:  26 kg / 57.32 lbs
