Switchbone V2 Amp Selector and Boost Pedal

« return to previous page

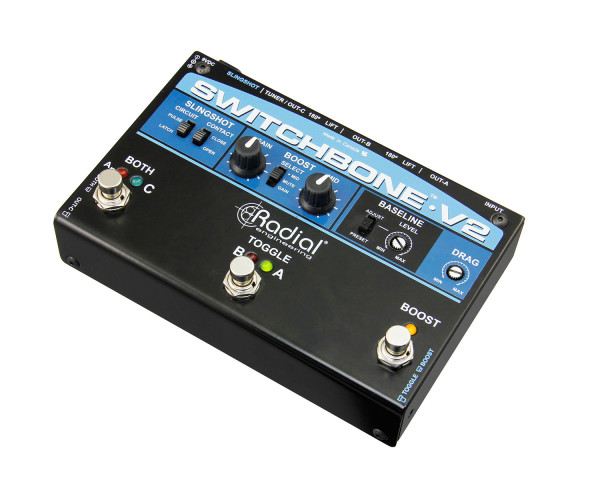

Radial Switchbone V2 Amp Selector and Boost Pedal - Main Image
Radial Switchbone V2 Amp Selector and Boost Pedal - Image 1
Radial Switchbone V2 Amp Selector and Boost Pedal - Image 2
Radial Switchbone V2 Amp Selector and Boost Pedal - Image 3
Radial Switchbone V2 Amp Selector and Boost Pedal - Image 4
Radial Switchbone V2 Amp Selector and Boost Pedal - Image 5
Price:
RRP: £543.73 inc VAT
Code:
RADSWBON
Manufacturer Code:
R800-7081-00
Brand:
Radial

Quantity required:

Main Features

  • 100% discrete, Class-A circuit
  • Noiseless opto-coupler amp switching
  • Transformer isolated to eliminate ground loops
  • Drag™ control corrects load on pickups
  • Class-A power booster with mid boost
  • Drive as many as three amps
  • Switches and splits guitar signal
Share:

Switchbone V2 Amp Selector & Boost Pedal

The Radial Switchbone™ has quietly gained a huge following by some of the most talented players on the planet. Eric Clapton, Derek Trucks and G.E. Smith are just a sampling. There are several reasons for this: The Radial Class-A buffer for tone purity, Drag™ control load correction for optimal feel, opto-couplers for click-free switching, transformer isolation to eliminate noise and a power booster that is considered to be the best in the business.

The Switchbone V2™ retains all of the above while adding a more powerful mid-boost section with fully variable mid-range, Slingshot™ remote controllability that lets you change channels or activate effects while hitting a footswitch, and it may be configured to drive as many as three amps at the same time for A, B, and C setups.

Product Features

Features

  • 100% discrete, Class-A circuit
  • Noiseless opto-coupler amp switching
  • Transformer isolated to eliminate ground loops
  • Drag™ control corrects load on pickups
  • Class-A power booster with mid boost

Applications

  • Drive as many as three amps
  • Switches and splits guitar signal
  • Power booster for soloing
  • Creates new sounds by combining amps

Cool Stuff

  • Retains the natural sound of the guitar
  • Does not introduce noise, hum or buzz
  • Super-intuitive LED indicators
  • Tuner output is separate from audio path

Product Specifications

  • Circuit Type:  Discrete Class-A
  • Input Impedance:  Variable with drag control
  • Load Correction:  Drag control variable load
  • Output Impedance:  10k Ohm
  • Noise Floor:  -111dB
  • Output-1:  Class-A buffered, direct
  • Output-2:  Class-A buffered, transformer isolated
  • Tuner/Output-3:  Class-A buffered, transformer isolated
  • Slingshot Remote Output:  Latch or pulse (selectable)
  • Baseline Gain:   Unity to +12dB
  • Boost Level:  Variable to +19dB
  • Mid-Boost:  0 to +13dB @650Hz
  • Switching:  Opto-coupler assisted, 5msec rise time
  • LED Indicators:  Large 3mm OD ultra-bright LED’s
  • Ground Lift:  Output-B and Tuner/Output-C
  • Polarity Reverse:  180° (phase) reverse at Output-B and Tuner/Output-C
  • Construction:  14 gauge steel, baked enamel finish
  • Size:  675 x 4625 x 175” (171 x 117 x 44mm)
  • Weight:   235lb (106kg)
