TesiraLUX OH-1 AVB/TSN Enabled Video Decoder

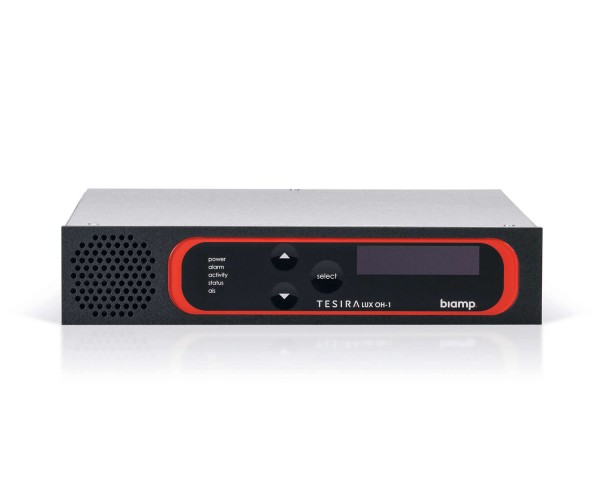

Biamp TesiraLUX OH-1 AVB/TSN Enabled Video Decoder - Main Image

Biamp TesiraLUX OH-1 AVB/TSN Enabled Video Decoder - Image 1

Biamp TesiraLUX OH-1 AVB/TSN Enabled Video Decoder - Image 2

Price:: RRP: £2,421.60 inc VAT
Code:: BIALUXOH1
Manufacturer Code:: 913.0427.900
Brand:: Biamp

Main Features

Includes one HDMI® port
Outputs video signals up to and including 4K60 with 4:4:4 subsampling
Supports a virtual matrix of up to 128 devices
Flexible color space including Rec. 2020
Integrated lip sync management
Supports 8 channel PCM audio for embedding/de-embedding

TesiraLUX OH-1

The TesiraLUX OH-1 is an AVB/TSN enabled video decoder capable of outputting video signals up to and including 4K60. The OH-1 functions as a video server-class device in a Tesira media system and is configured through the Tesira configuration software. Acting as an AVB listener, the OH-1 fully integrates digital audio and video on a single network, allowing for simplified lip sync management and end-to-end network transit latencies of less than 1.5 frames. The AVB/TSN streams can be received over 1Gb or 10Gb ports while control signals are managed via a separate 1Gb Ethernet port. The OH-1 accepts 8 channels of PCM audio for embedding/de-embedding, and includes 2 mic/line level analogue outputs. The TesiraLUX OH-1 can be used as a standalone device (paired with a TesiraLUX IDH-1) or can be combined with other Tesira servers, expanders, endpoints, and controllers.

Product Features

Includes one HDMI® port
Outputs video signals up to and including 4K60 with 4:4:4 subsampling
Supports a virtual matrix of up to 128 devices
Flexible color space including Rec. 2020
Integrated lip sync management
Supports 8 channel PCM audio for embedding/de-embedding
Supports port authentication via IEEE 802.1X
Supports HDCP 2.2 protected content
Automated EDID management between TesiraLUX and the output display
2 mic/line level analogue audio outputs
4 logic connections can be used as inputs or outputs
Serial port for the output of command strings
Half-rack chassis
Optional mounting accessories available
Covered by Biamp Systems’ 5-year warranty

Product Specifications

General

Control Connection: RJ-45 with Ethernet cable
- (Cat 5e and above)
Media Connections:
- 1Gb: RJ-45 twisted-pair Ethernet
  - (Cat 5e and above)
- 10Gb: 10G fibre SFP+
Video Outputs:
- Supported Resolutions: Up to 4K60
- Physical Interface: HDMI
- Colourspace: Up to Rec. 2020
- Colour Formats: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Colour Depth: 8-bit, 10-bit, 12-bit, 16-bit
- Network Transit Latency: 1.5 frames (25ms @ 60fps)
- HDMI Audio Formats: 8ch PCM
Logic I/O:
- Logic Input Trigger: Contact Closure or 5V TTL
- LED Driver: 5V/10mA per output
- Logic Output Type: Open Collector;
- Sink 40V/300mA per output
- RS-232: 115200/8-N-1
Analog Audio Outputs:
- Frequency Response
- (20Hz~20kHz @ +4dBu): +0/-0.25dB
- THD+N (20Hz~20kHz): < 0.0035%
- Dynamic Range (20Hz~20kHz, 0dB): > 110dB
- Output Impedance (balanced): 200Ω
- Maximum Output: +24dBu
- Cross Talk (channel to channel @ 1kHz): < -95dB
- Selectable Full Scale Output Levels: +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
- Sampling Rate: 48 kHz
- D/A Converters: 24-bit
Current Draw (100-240VAC 50/60Hz): 0.5-0.21A
Environmental:
- Ambient Operating
- Temperature Range: 32 - 104° F (0 - 40° C)
- Humidity: 0-95% relative humidity (non-condensing)
- Altitude: 0-6,600 ft (0-2000m) MSL
