TU631 30W Low Imp Compression Driver 16Ω Excl Horn Flare

« return to previous page

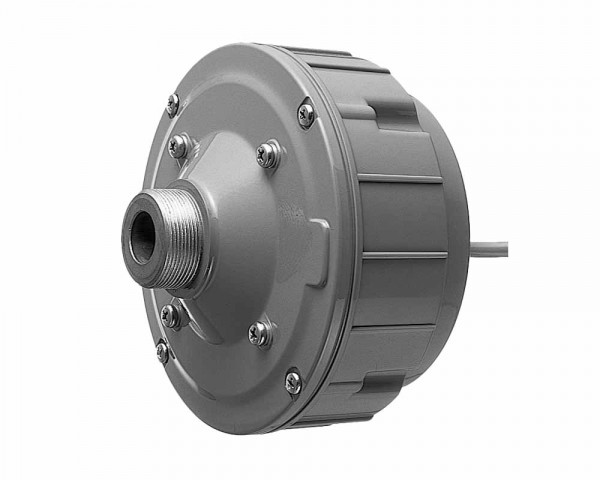

TOA TU631 30W Low Imp Compression Driver 16Ω Excl Horn Flare - Main Image
Price:
RRP: £54.00 inc VAT
Code:
TOATU631
Manufacturer Code:
TU-631
Brand:
TOA

Quantity required:

Main Features

  • Highly intelligible driver for suitable TOA horns
  • Suited to public address announcement applications
  • Powder-coated finish
  • Stainless steel screws ensure the unit's weatherproof capability
  • Applicable Horns:  TH-650, TH-660
  • Weight:  1.4 kg (3.09 lb)
Share:

TU-631 Driver Unit

The TU-631 is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.

Product Features

  • Highly intelligible driver unit
  • Suited to public address announcement applications
  • Powder-coated finish
  • Applicable Horns:  TH-650, TH-660

Product Specifications

  • Applicable Horns:  TH-650, TH-660
  • Rated Input:  30 W
  • Rated Impedance:  16 Ω
  • Sensitivity:  110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
  • Frequency Response:  150 Hz - 6 kHz (When operated with JIS C 5504 standard horn.)
  • Dust/Water Protection:  IP65 (When a driver is operated with a horn.)
  • Horn Coupling:  1 - 3/8 18 threads (inch screw)
  • Polarity:  Hot: Black, Com: White
  • Operating Temperature:  -20 %%dC to +60 %%dC (-4 ゜F to +140 ゜F) (no condensation)
  • Finish:
    • Flange: Aluminum, gray, powder coating
    • Rear cover: ABS resin, gray
    • Screws: Stainless steel
    • Speaker cable: Polyvinyl chloride insulated cabtyre cable
    • (6 mm (0.24") in diameter, 600 mm (23.62") in length)
  • Dimensions:  %%c139 × 106 (D) mm (φ5.47" × 4.17")
  • Weight:  1.4 kg (3.09 lb)
  • Option:
    • Driver unit cover: UC-200A
    • Matching transformer: TM-30T, TM-60T
