TU631M 30W 100V Line Compression Driver Excluding Horn Flare

« return to previous page

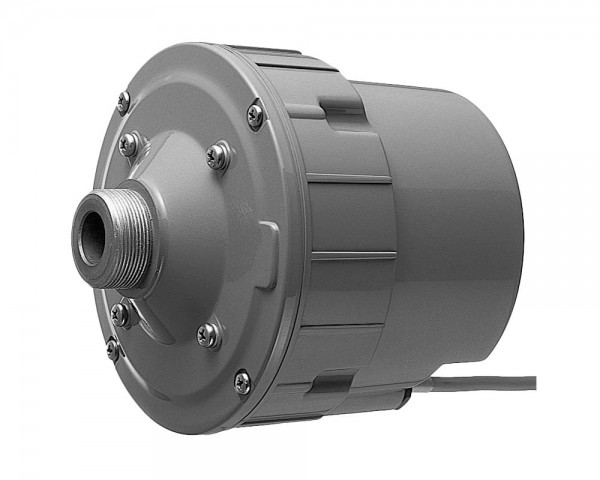

TOA TU631M 30W 100V Line Compression Driver Excluding Horn Flare - Main Image
Price:
RRP: £72.00 inc VAT
Code:
TOATU631M
Manufacturer Code:
TU-631M
Brand:
TOA

Quantity required:

Main Features

  • Highly intelligible driver for suitable TOA horns
  • Suited to public address announcement applications
  • Powder-coated finish
  • Stainless steel screws ensure the unit's weatherproof capability
  • Applicable Horns:  TH-650, TH-660
  • Weight:  1.9 kg (4.19 lb)
Share:

TU-631M Driver Unit

The TU-631M is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.

Product Features

  • Highly intelligible driver unit
  • Suited to public address announcement applications
  • Powder-coated finish
  • Applicable Horns:  TH-650TH-660

Product Specifications

  • Applicable Horns:  TH-650, TH-660
  • Rated Input:  30 W
  • Line Voltage:  100 V line or 70 V line
  • Rated Impedance:
    • 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
    • 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
  • Sensitivity: 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
  • Frequency Response:  150 Hz - 6 kHz (When operated with JIS C 5504 standard horn.)
  • Dust/Water Protection:  IP65 (When a driver is operated with a horn.)
  • Horn Coupling:  1 - 3/8 18 threads (inch screw)
  • Polarity:  Hot: Black, Com: White
  • Operating Temperature:  -20 %%dC to +60 %%dC (-4 ゜F to +140 ゜F) (no condensation)
  • Finish:
    • Flange: Aluminum, gray, powder coating
    • Rear cover: ABS resin, gray
    • Screws: Stainless steel
    • Speaker cable: Polyvinyl chloride insulated cabtyre cable
    • (6 mm (0.24") in diameter, 600 mm (23.62") in length)
  • Dimensions:  %%c139 × 149 (D) mm (φ5.47" × 5.87")
  • Weight:  1.9 kg (4.19 lb)
  • Option:  Driver unit cover: UC-200A
