UBL12H 1m Indoor Linear Fixture 12x20W RGBAL+UV LEDs

« return to previous page

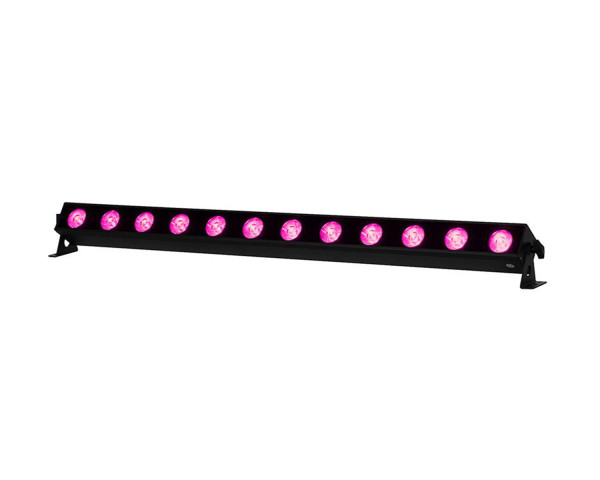

ADJ UBL12H 1m Indoor Linear Fixture 12x20W RGBAL+UV LEDs - Main Image
ADJ UBL12H 1m Indoor Linear Fixture 12x20W RGBAL+UV LEDs - Image 1
ADJ UBL12H 1m Indoor Linear Fixture 12x20W RGBAL+UV LEDs - Image 2
ADJ UBL12H 1m Indoor Linear Fixture 12x20W RGBAL+UV LEDs - Image 3
Price:
RRP: £358.80 inc VAT
Code:
ADJUBL12H
Manufacturer Code:
1226200068
Brand:
ADJ

Quantity required:

Main Features

  • 12 x 20W Ultra bright (RGBAL+UV) LEDs
  • Linear Colour Temperature Control (2,300K to 9,900K)
  • Smooth RGBAL+UV colour mixing
  • Horizontal Magnetic Alignment feature (Built-In)
  • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
  • RDM Compatible
Share:

UBL12H 1m Indoor Linear Fixture 12x20W RGBAL+UV LEDs

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL12H incorporates a lime-infused HEX LED with twelve (12) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

The UBL12H takes linear wash lighting to the next level with its high CRI output and linear colour temperature control, ranging from 2,300K to 9,900K. The added lime chip enhances colour indexing, ensuring a superior visual experience with a CRI exceeding 90. This fixture empowers lighting designers and event producers to craft captivating displays on walls, floors, and ceilings.

Featuring a 17° beam angle and a pixel pitch of 85.5mm, the UBL12H offers smooth RGBAL+UV colour mixing and a unique Horizontal Magnetic Alignment feature allows for seamless colour output across multiple fixtures. Control is at your fingertips with the OLED display and 4-buttons, offering linear colour temperature control and compatibility with the ADJ UC-IR24 remote. The UBL12H supports seven DMX channel modes and offers five operational modes, including Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode. This fixtures is RDM compatible.

Product Features

  • 12 x 20W Ultra bright (RGBAL+UV) LEDs
  • Linear Colour Temperature Control (2,300K to 9,900K)
  • Smooth RGBAL+UV colour mixing
  • Horizontal Magnetic Alignment feature (Built-In)
  • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
  • RDM Compatible

Product Specifications

Light Source

  • 12 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
  • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • 17° beam angle
  • CRI >90
  • Pixel Pitch: 85.5mm

Control

  • Linear Colour Temperature Control (2,300K to 9,900K)
  • OLED Display with 4-buttons
  • 7 DMX Channel Modes: 6, 11, 13, 16, 36, 43, & 46 Channels
  • 6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36, 43 & 46 channel modes
  • 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
  • LED Refresh Rate: 1.9KHz
  • 64 built-in Colour Macros
  • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
  • Built-In Microphone for sound trigger
  • LED pulse and strobe effect
  • Electronic Dimming: 0-100

Connections

  • Linkable: DMX via 5-pin XLR cable
  • Indoor Locking power In/Out to daisy chain power

Electrical

  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power Draw: 61W
  • Daisy-chain power link (Up to 17 UBL12H's can be linked @120V and up to 32 UBL12H's can be linked @230V)

Environment

  • Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
  • Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

Certifications / IP Rating

  • cETLus (Control # 4002034)
  • CE
  • FCC
  • IP20

Dimensions / Weight

  • Dimensions (LxWxH): 2.96" x 42.60" x 4.2" (75x1082x106.7mm)
  • Weight: 7.50 lbs./ 3.4kg

What's in the Box?

  • 1 x Indoor Locking Power Cord
  • 1 x UC-IR24
  • 1 x 20° Diffusion Filter
  • Includes mounting brackets to set on the ground or to mount a clamp for truss mounting
