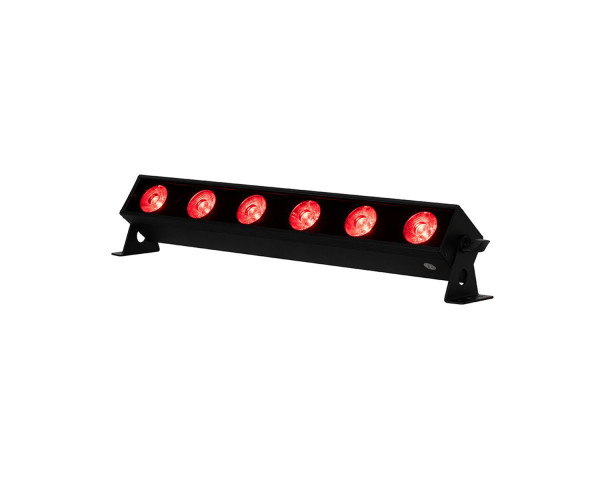

UBL6H 0.5m Indoor Linear Fixture with 6x20W RGBAL+UV LEDs

« return to previous page
ADJ UBL6H 0.5m Indoor Linear Fixture with 6x20W RGBAL+UV LEDs - Main Image
ADJ UBL6H 0.5m Indoor Linear Fixture with 6x20W RGBAL+UV LEDs - Image 1
ADJ UBL6H 0.5m Indoor Linear Fixture with 6x20W RGBAL+UV LEDs - Image 2
ADJ UBL6H 0.5m Indoor Linear Fixture with 6x20W RGBAL+UV LEDs - Image 3
ADJ UBL6H 0.5m Indoor Linear Fixture with 6x20W RGBAL+UV LEDs - Image 4
Price:
RRP: £238.80 inc VAT
Code:
ADJ1226200070
Manufacturer Code:
1226200070
Brand:
ADJ

Quantity required:

Main Features

  • 6 x 20W Ultra bright (RGBAL+UV) LEDs
  • Linear Colour Temperature Control (2,300K to 9,900K)
  • Smooth RGBAL+UV colour mixing
  • Horizontal Magnetic Alignment feature (Built-In)
  • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
  • RDM Compatible
Share:

UBL6H 0.5m Indoor Linear Fixture with 6x20W RGBAL+UV LEDs

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL6H incorporates a lime-infused HEX LED with six (6) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

Featuring a 17° beam angle and a pixel pitch of 85.5mm, the UBL6H offers smooth RGBAL+UV colour mixing and a unique Horizontal Magnetic Alignment feature allows for seamless colour output across multiple fixtures. Control is at your fingertips with the OLED display and 4-buttons, offering linear colour temperature control and compatibility with the ADJ UC-IR24 remote. The UBL9H supports seven DMX channel modes and offers five operational modes, including Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode. This fixtures is RDM compatible.

Product Features

  • 6 x 20W Ultra bright (RGBAL+UV) LEDs
  • Linear Colour Temperature Control (2,300K to 9,900K)
  • Smooth RGBAL+UV colour mixing
  • Horizontal Magnetic Alignment feature (Built-In)
  • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
  • RDM Compatible

Product Specifications

Light Source

  • 6 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
  • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • 17° beam angle
  • CRI >90
  • Pixel Pitch: 85.5mm

Control

  • Linear Color Temperature Control (2,300K to 9,900K)
  • OLED Display with 4-buttons
  • 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
  • 3 Groups x2 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes
  • 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
  • LED Refresh Rate: 1.9KHz
  • 64 built-in Color Macros
  • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
  • Built-In Microphone for sound trigger
  • LED pulse and strobe effect
  • Electronic Dimming: 0-100%

Connections

  • Linkable: DMX via 5-pin XLR cable
  • Locking power In/Out to daisy chain power

Electrical

  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power Draw: 26W
  • Daisy-chain power link (Up to 26 UBL6H's can be linked @120V and up to 50 UBL6H's can be linked @230V)

Environment

  • Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
  • Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

Certifications / IP Rating

  • cETLus (Control # 4002034)
  • CE
  • FCC
  • IP20

Dimensions / Weight

  • Dimensions (LxWxH): 2.96" x 22.40" x 4.2" (75x568.9x106.7mm)
  • Weight: 4.41 lbs./ 2kg.

What's in the Box?

  • 1 x Indoor Locking Power Cord
  • 1 x UC-IR24
  • 1 x 20° Diffusion Filter
  • Includes mounting brackets to set on the ground or to mount a clamp for truss mounting
