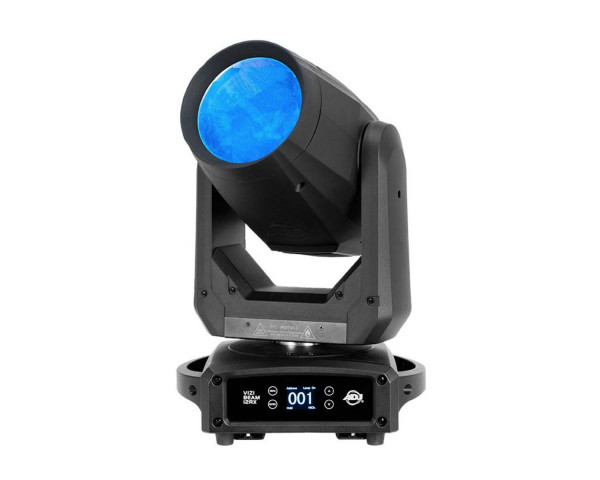

Vizi Beam 12RX Moving Head Beam with 16 Gobos & 12R LL MSD Lamp

« return to previous page
ADJ Vizi Beam 12RX Moving Head Beam with 16 Gobos & 12R LL MSD Lamp - Main Image
ADJ Vizi Beam 12RX Moving Head Beam with 16 Gobos & 12R LL MSD Lamp - Image 1
ADJ Vizi Beam 12RX Moving Head Beam with 16 Gobos & 12R LL MSD Lamp - Image 2
Price:
RRP: £1,676.40 inc VAT
Code:
ADJ1237000303
Manufacturer Code:
1237000303
Brand:
ADJ

Quantity required:

Main Features

  • High powered beam moving head
  • Powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp
  • Fitted with two prism wheels - a 6 facet liner prism and a 24-facet circular prism
  • 2 DMX modes (14 or 16 channels) and RDM control options
  • 3-pin and 5-pin DMX In/Out connections
  • IP65 Locking Power In/Out connections
Share:

Vizi Beam 12RX Moving Head Beam with 16 Gobos & 12R LL MSD Lamp

The Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). It produces a razor-sharp 2-degree beam of lightwith motorized focus. It comes with 14 colors + open (including UV, CTO & CTB, with color indexing), 16 fixed GOBOs + open (with GOBO indexing), and a frost filter for wash effects. To create breathtaking aerial effects, the Vizi Beam 12RX is fitted with two prism wheels - a 6 facet liner prism and a 24-facet circular prism.

The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and IP65 Locking Power In/Out connections to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system.

Product Features

  • High powered beam moving head
  • Powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp
  • Fitted with two prism wheels - a 6 facet liner prism and a 24-facet circular prism
  • 2 DMX modes (14 or 16 channels) and RDM control options
  • 3-pin and 5-pin DMX In/Out connections
  • IP65 Locking Power In/Out connections

Product Specifications

Source

  • Philips Platinum 12R Long Life Discharge
  • Lamp Wattage: 260W
  • Average Lifetime: 6,000 hrs
  • Colour Temperature : 7800K
  • CRI: 74
  • Lux: 70,000 lux @20m

Optics

  • Beam Angle: 2-degrees
  • High Quality Glass Lens
  • 2 Prisms
  • 24-facet rotating circular prism
  • 6-facet rotating linear prism
  • Linear Frost filter
  • Motorized 16bit Focus

Control

  • 2 operational Modes: Internal Programs or DMX Control
  • 2 DMX Channel Modes: 14 or 16 Channels
  • RDM compatible (Remote Device management)
  • 16bit Pan 540°
  • 16bit Tilt 270°
  • Various strobe effects
  • Display: Colour display with 4-button function menu

Colours

  • 1 Colour Wheel with 11 colours + CTO + CTB + UV + White
  • Split Colours

Gobos

  • 1 metal Gobo Wheel with 12 static Gobos + 4 beam reducers + Open

Construction

  • PVC molding
  • Includes omega brackets

Electrical

  • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
  • Power consumption: 371W

Connections

  • 3 & 5-pin Locking DMX In/Out connections
  • IP65 Locking Power In/Out connections
  • USB Service Port for software updates

Dimensions & Weight

  • Dimension: 350 × 343.5 × 565mm
  • Weight: 18 kg.

What's in the Box?

  • Vizi Beam 12RX
  • Omega Brackets
  • 1.83M locking power cable
