Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp

« return to previous page
ADJ Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp - Main Image
ADJ Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp - Image 1
ADJ Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp - Image 2
ADJ Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp - Image 3
ADJ Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp - Image 4
ADJ Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp - Image 5
ADJ Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp - Image 6
ADJ Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp - Image 7
Price:
RRP: £934.80 inc VAT
Code:
ADJ1237000337
Manufacturer Code:
1237000337
Brand:
ADJ

Quantity required:

Main Features

  • On-Board Wireless DMX
  • Motorised Focus + 16-bit fine focus
  • 2-degree beam angle
  • Frost Filter to create a wash effect
  • High quality glass lens
  • 2 Rotating prisms
Share:

Vizi Beam RX2 Moving Head 100W Osram Sirius HRI Discharge Lamp

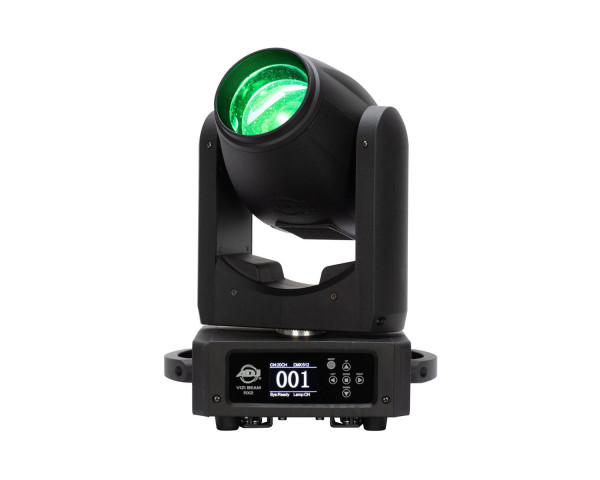

The ADJ Lighting Vizi Beam RX2 is a compact, high-performance moving head beam fixture that features a 100W Osram Sirius HRI discharge lamp, a razor-sharp 2-degree beam, two prism effects, and a host of high-performance features for the modern lighting professional.

Product Features

  • On-Board Wireless DMX
  • Motorised Focus + 16-bit fine focus
  • 2-degree beam angle
  • Frost Filter to create a wash effect
  • High quality glass lens
  • 2 Rotating prisms
  • 0-100% smooth dimming
  • Various strobe speeds
  • OTA, wireless, firmware updates
  • Fan cooled

Product Specifications

Light Source

  • OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
  • Color temperature: 9000K (+/- 300K)

Colour Wheel

  • 14 dichroic colours + white (Includes CTO (3200K), CTB (4500K & 9000K) & UV filters)
  • Indexable colour wheel for split colours

GOBO Wheel

  • 15 static GOBOs + open (3 GOBOs are beam reducers)
  • GOBO Shake Effect

Prism Wheels

  • 2 Rotating prisms
  • 16- facet circular and 4-facet linear prisms

Control

  • Protocols: DMX512 & RDM
  • Control Mode: DMX512 & Manual (On-board Controls)
  • 2 DMX Channel Modes: 12/16 Channels
  • Aria X2 Wireless Management / DMX System
  • Color LCD display with 4-button function menu
  • 0-100% smooth dimming
  • Various strobe speeds
  • With Wired Digital Communication Network

Pan/Tilt

  • Pan: 540 degrees (plus 16-bit fine pan)
  • Tilt: 270 degrees (plus 16-bit fine tilt)
  • 3 Phase, High Speed, Pan/Tilt motors

Connections

  • DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
  • Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical

  • Multi-voltage operation: 100-240V, 50/60Hz
  • Max power consumption: 168W (@120V), 157W (@230V)
  • Fuze Protected: 3.15A

Dimensions & Weight

  • Dimension: 9” (L) x 12” (W) x 16.3” (H) (230 x 304 x 416mm)
  • Weight: 16.5 lbs. / 7.5 kg.

Approvals / Ratings

  • CE
  • cETLus (Control # 5028947)
  • FCC

What's in the Box?

  • 2 x Omega Brackets (107 Type)
  • 2M, outdoor locking 14AWG power cord
