WM-5270 UHF 64Ch Cardioid Dynamic Handheld Transmitter D04 CH70

« return to previous page

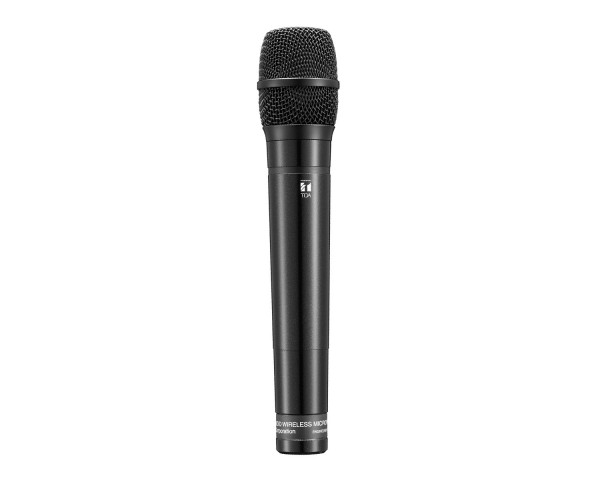

TOA WM-5270 UHF 64Ch Cardioid Dynamic Handheld Transmitter D04 CH70 - Main Image
Price:
RRP: £370.80 inc VAT
Code:
TOAWM5270D
Manufacturer Code:
WM-5270 D04
Brand:
TOA

Quantity required:

Main Features

  • Dynamic vocal microphone with a cardioid pickup pattern with excellent sound characteristics
  • Robust construction and its well-balanced weight
  • On/off-switch is located at the bottom of the microphone body to protect accidentally activation during a live performance
  • Highly immune to handling noise and feedback
  • Professional vocal microphone for live use within our 5000 Series
  • D04 CH70
Share:

WM-5270 UHF 64Ch Cardioid Dynamic Handheld Transmitter D04 CH70

The WM-5270 Wireless Microphone employs a dynamic microphone capsule with high input handling capacity and is suitable for vocal application and other professional uses. Thanks to the PLL-synthesizer system, 16 different operating frequencies (4 banks) are made available. A high output power ensures stable radio signal transmission. The maximum input sound pressure can be set in the range of 130 dB SPL to 142 dB SPL by a PAD switch, permitting adaptation to wide range of input sound pressure.

Product Features

  • Dynamic vocal microphone with a cardioid pickup pattern with excellent sound characteristics
  • Robust construction and its well-balanced weight
  • On/off-switch is located at the bottom of the microphone body to protect accidentally activation during a live performance
  • Highly immune to handling noise and feedback
  • Professional vocal microphone for live use within our 5000 Series

Product Specifications

  • Power source:  Battery (1 AA size alkaline battery, 1.5 V)
  • Battery life:  10 h
  • Microphone type:  Dynamic
  • Directivity:  Cardioid
  • Frequency range:  863 – 865 MHz
  • Selectable frequencies:  64
  • Simultaneous channels:  7
  • AF response:  80 Hz - 15 kHz
  • RF output power:  10 mW
  • Maximum SPL:  142 dB
  • Operating humidity:  30% - 85%
  • Operating temperature:  -10°C ... +50°C
  • Finish:  Metal, dark grey
  • Dimensions:  48 x 244 mm (Ø x D)
  • Weight:  340 g (with battery)

What’s in the Box?

  • 1x WM-5270 D04
  • 1x Microphone holder
  • 1x Storage case
  • 1x Screwdriver (for setting)
  • 1x Rolling stopper
