X MAX 10 10" 2-Way High-Powered Loudspeaker 350W Black

« return to previous page

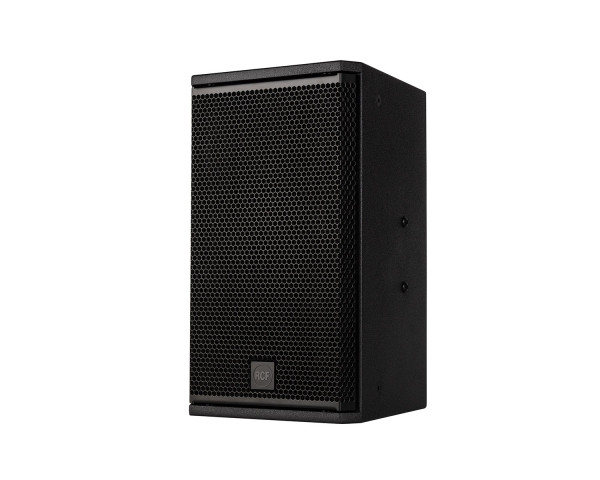

RCF X MAX 10 10 2-Way High-Powered Loudspeaker 350W Black - Main Image
RCF X MAX 10 10 2-Way High-Powered Loudspeaker 350W Black - Image 1
RCF X MAX 10 10 2-Way High-Powered Loudspeaker 350W Black - Image 2
RCF X MAX 10 10 2-Way High-Powered Loudspeaker 350W Black - Image 3
RCF X MAX 10 10 2-Way High-Powered Loudspeaker 350W Black - Image 4
RCF X MAX 10 10 2-Way High-Powered Loudspeaker 350W Black - Image 5
RCF X MAX 10 10 2-Way High-Powered Loudspeaker 350W Black - Image 6
RCF X MAX 10 10 2-Way High-Powered Loudspeaker 350W Black - Image 7
Price:
RRP: £559.20 inc VAT
Code:
RCFXMAX10
Manufacturer Code:
13000657
Brand:
RCF

Quantity required:

Main Features

  • 700 W program power handling
  • 128 dB max SPL
  • 65 ÷ 20000 Hz frequency range
  • 90° x 70° constant directivity coverage angle
  • 1 x 10" high power woofer
  • 1 x 1.4" voice coil compression driver
Share:

X MAX 10 10" 2-Way High-Powered Loudspeaker 700W Black

The full-range passive two-way speaker X-MAX 10 has been specifically designed as club systems for entertainment, to achieve the best nearfield quality, vocal coherence and a stable tonal balance even at high volume. The heavy-duty speaker cabinet is made of plywood coated with black textured acrylic paint. Featuring a 10” woofer with a 2.5” voice and a 1.0” compression driver with 1.4” voice coil. The LICC crossover design includes an electronic protection on high-frequency device. The rotatable 90°x70° horn allows installation either vertically or horizontally in any environment and architectural constraint.

Product Features

  • 700 W program power handling
  • 128 dB max SPL
  • 65 ÷ 20000 Hz frequency range
  • 90° x 70° constant directivity coverage angle
  • 1 x 10" high power woofer
  • 1 x 1.4" voice coil compression driver
  • High quality plywood cabinet
  • Installation points available on all panels

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB):  65 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  128 dB
  • Horizontal coverage angle:  90°
  • Vertical coverage angle:  70°
  • Directivity index Q:  11
  • System Sensitivity:  97 dB

Power section

  • Nominal Impedance:  8 ohm
  • Power Handling:  350 W
  • Peak Power Handling:  1400 W PEAK
  • Recommended Amplifier:  700 W
  • Protections:  Dynamic active mosfet
  • Crossover Frequencies:  1800 Hz

Transducers

  • Compression Driver:  1 x 1.0'', 1.4'' v.c
  • Woofer:  10'', 2.5'' v.c

Input/Output section

  • Input connectors:  Speakon

Standard compliance

  • CE marking:  Yes

Physical specifications

  • Cabinet/Case Material:  Plywood
  • Hardware:  2 x M8, 16 x M10
  • Grille:  Steel with clothing
  • Colour:  Black

Physical & Dimensions

  • Height:  510 mm / 20.08 inches
  • Width:  295 mm / 11.61 inches
  • Depth:  325 mm / 12.8 inches
  • Weight:  17 kg / 37.48 lbs
