ZM9002 M9000 Series Remote Panel Four Button & V/C

« return to previous page

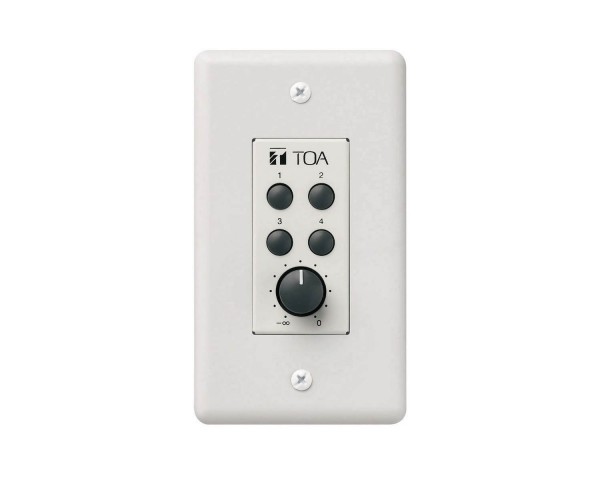

TOA ZM9002 M9000 Series Remote Panel  Four Button & V/C - Main Image
Price:
RRP: £60.00 inc VAT
Code:
TOAZM9002
Manufacturer Code:
ZM-9002
Brand:
TOA

Quantity required:

Main Features

  • 4 buttons to activate preset selection or volume up/down
  • Volume control knob
  • Wiring: single conductor shielded cable
  • Max. loop resistance: 50 Ω per line
  • Mounting in one gang electical box
  • Maximum 2 remote panels per chassis
Share:

ZM9002 M9000 Series Remote Panel Four Button & V/C

The ZM-9002 is a remote control switch/volume panel used with the 9000 series amplifiers. It adds 4 amplifier control inputs and 1 remote volume control, and can be mounted in a standard 1-gang electrical box in the wall.

Product Features

  • 4 buttons to activate preset selection or volume up/down
  • Volume control knob
  • Wiring: single conductor shielded cable
  • Max. loop resistance: 50 Ω per line
  • Mounting in one gang electical box
  • Maximum 2 remote panels per chassis

Product Specifications

  • Applicable cable:  Single conductor shielded cable
  • Line resistance:  50 Ω per line
  • Connection:  M3 screw terminal, distance between barriers: 7.62 mm
  • Dimensions (W x H x D):  72 x 127 x 56 mm
  • Dimensions (ø x D):  x 56 mm
  • Finish:  Steel plate, surface-treated, paint, white,
