ASP212 2 x 1-2 Passive Antenna Splitter (BNC 2 x 1in / 2out)

« return to previous page

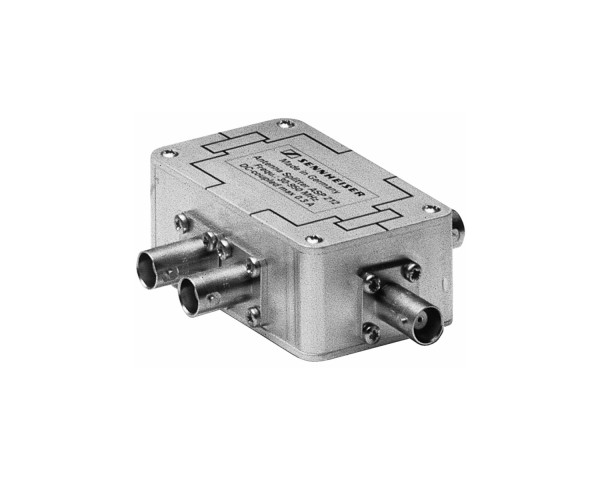

Sennheiser ASP212 2 x 1-2 Passive Antenna Splitter (BNC 2 x 1in / 2out) - Main Image
Price:
RRP: £310.80 inc VAT
Code:
SENASP212
Manufacturer Code:
003421
Brand:
Sennheiser

Quantity required:

Main Features

  • 2 x 1: 2 (ASP 212) Passive Antenna Splitter
  • DC-coupled for use with antenna boosters
  • Frequency range 30-950 MHz
  • Max. current 0.3 A DC
  • Attenuation approx: 4 dB
  • 3 Antenna splitter modules
Share:

ASP212 2 x 1-2 Passive Antennae Splitter

The Sennheiser ASP 212 Passive 2 x 2 x 2 Antenna SplitterDC-coupled for use with antenna boosters.

The three EM 1046 ASP antenna splitter modules serve to supply several mainframes with the signals of only two antenna. With an EM 1046 ASP 212, a 16-channel system can be operated with only one pair of antenna.

Product Features

  • 3 Antenna splitter modules
  • Multiple midules supply several mainframes
  • A 16 Channel system can be operated with only one pair

Product Specifications

  • Frequency Range:  30-950 MHz
  • Max current:  0.3 A DC
  • Attenuation approx:  4 dB
  • RF connector:  BNC socket
