A3700 EM2000 Series Omni-Directional Wideband Antenna

« return to previous page

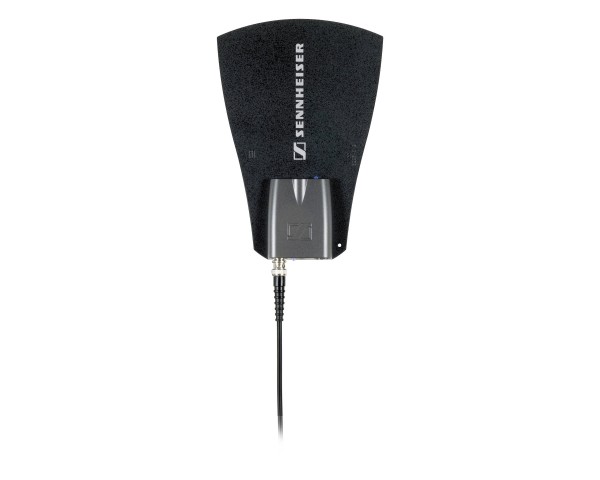

Sennheiser A3700 EM2000 Series Omni-Directional Wideband Antenna - Main Image
Price:
RRP: £1,006.80 inc VAT
Code:
SENA3700
Manufacturer Code:
502195
Brand:
Sennheiser

Quantity required:

Main Features

  • Omnidirectional antenna
  • Specifically compatible with the EM3731/3732 series
  • Also specifically compatible with EM2000/2050 receivers
  • BCN Connector
  • Mounting: 3/8" or 5/8" thread
  • 50 Ω Impedance
Share:

A3700 EM2000 Series Omni-Directional Wideband Antenna

Omnidirectional antenna with integrated AB3700 for EM3731/3732 series and EM2000/2050 receivers only.

Product Features

  • Omnidirectional antenna
  • Specifically compatible with the EM3731/3732 series
  • Also specifically compatible with EM2000/2050 receivers
  • BCN Connector
  • Mounting: 3/8" or 5/8" thread
  • 50 Ω Impedance

Product Specifications

  • Frequency range:  470 – 866 MHz
  • Radiation pattern:  omni-directional
  • Amplification (booster) typ.:  bypass (-3 dB), 5 dB, 10 dB, 15  dB adjustable, without DC feed: -6 dB
  • Impedance:  50 Ω
  • OIP3:  ≥ 32 dBm
  • RF connection:  BCN socket
  • Power supply:  9 – 15 V ⎓ / 160 – 100 mA, DC feed via antenna cable (RF  OUT socket)
  • Mounting connection:  3/8" or 5/8" thread
  • Dimensions:  250 x 165 x 23 mm
  • Weight incl. booster:  390 g

What's in the Box?

  • 1 x A3700
  • User Manual

Optional Accessories

  • GZP10 Mounting Plate
  • GZG1029 Swivel Joint

Product Downloads
