AD1800 Passive Directional Antenna for 1.8GHz Systems Only

« return to previous page

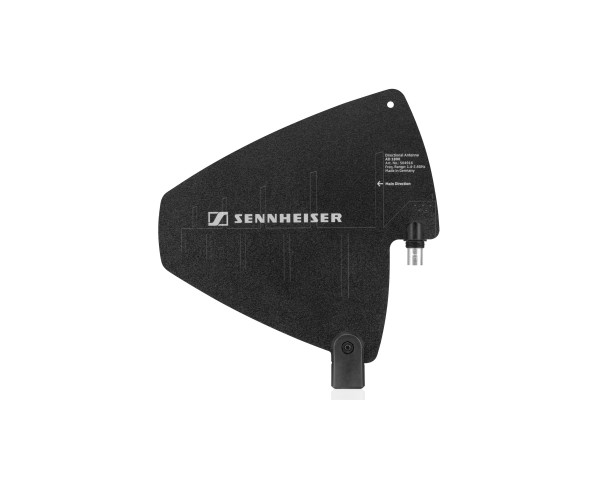

Sennheiser AD1800 Passive Directional Antenna for 1.8GHz Systems Only - Main Image
Price:
RRP: £262.80 inc VAT
Code:
SENAD1800
Manufacturer Code:
504916
Brand:
Sennheiser

Quantity required:

Main Features

  • Sennheiser AD1800 Passive Directional Antenna
  • Antenna for 1.8GHz Systems Only
  • Gain:  approx. 4 dB
  • Connection: BNC socket, 50 Ω
  • Dimensions: 180 x 1920 x 22 mm
  • Weight approx.: 116 g
Share:

AD1800 Passive Directional Antenna

Passive directional antenna for 1800 MHz range

Product Features

  • Sennheiser AD1800 Passive Directional Antenna
  • Antenna for 1.8GHz Systems Only
  • Gain:  approx. 4 dB
  • Connection: BNC socket, 50 Ω
  • Dimensions: 180 x 1920 x 22 mm
  • Weight approx.: 116 g

Product Specifications

  • Frequency range:  1,400–2,400 MHz
  • Apex angle (-3 dB):  approx. 100°
  • Front-to-back ratio:  > 14 dB
  • Gain:  approx. 4 dB
  • Connection:  BNC socket, 50 Ω
  • Dimensions:  180 x 1920 x 22 mm
  • Weight approx.:  116 g

Optional Accessories

  • GZP10 Mounting Plate
  • GZG1029 Swivel Joint

Product Downloads
