ATM450 Side-Address Cardioid Condenser Instrument Microphone

« return to previous page

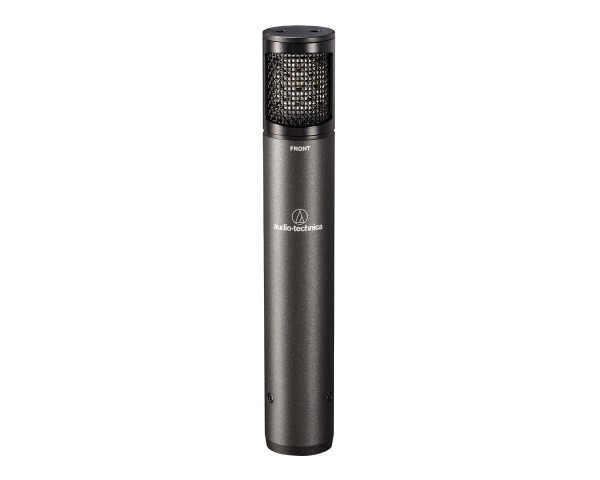

Audio Technica ATM450 Side-Address Cardioid Condenser Instrument Microphone - Main Image
Audio Technica ATM450 Side-Address Cardioid Condenser Instrument Microphone - Image 1
Audio Technica ATM450 Side-Address Cardioid Condenser Instrument Microphone - Image 2
Price:
RRP: £228.00 inc VAT
Code:
AUDATM450
Manufacturer Code:
ATM450
Brand:
Audio Technica

Quantity required:

Main Features

  • Unique side-address stick design maximizes placement options with minimal obstructions
  • Uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments
  • Integral 80 Hz HPF switch and 10 dB pad
  • Durable performance for professional applications
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Rugged, all-metal design and construction for years of trouble-free use
Share:

ATM450 Side-Address Cardioid Condenser Instrument Microphone

One of the new stars of the Artist Series remake, the ATM450 cardioid condenser offers an innovative side-address stick design for endless placement options and minimal obstructions. The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The ATM450 also features a switchable 10 dB pad that lowers the microphone's sensitivity, providing higher SPL capability for flexible use with a wide range of performers and system configurations. The microphone’s extended flat frequency response makes it ideal for high SPLs as well as for live and amplified acoustic instruments. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.

Product Features

  • Unique side-address stick design maximizes placement options with minimal obstructions
  • Uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments
  • Integral 80 Hz HPF switch and 10 dB pad
  • Durable performance for professional applications
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Rugged, all-metal design and construction for years of trouble-free use
  • Includes isolation clamp for shock protection, secure mounting and easy positioning

Product Specifications

  • Element:  Fixed-charge back plate permanently polarized condenser
  • Polar Pattern:  Cardioid
  • Frequency Response:  40 - 20,000 Hz
  • Low Frequency Roll Off:  80 Hz, 12 dB/octave
  • Open Circuit Sensitivity:  -41 dB (8.9 mV) re 1V at 1 Pa
  • Maximum Input Sound Level:
    • 152 dB SPL, 1 kHz at 1% T.H.D.
    • 162 dB SPL, with 10 dB pad (nominal)
  • Dynamic Range:  127 dB, 1 kHz at Max SPL
  • Signal-to-Noise Ratio:  69 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements:  11-52V DC, 3.5 mA typical
  • Switches:  Flat, roll-off; 10 dB pad
  • Weight:  98g
  • Dimensions:  126.9 mm (5.00") long, 21.0 mm (0.83") diameter
  • Output Connector:  Integral 3-pin XLRM-type

What's in the Box?

  • AT8471 isolation clamp for 5/8"-27 threaded stands
  • 5/8"-27 to 3/8"-16 threaded adapter
  • Windscreen
  • Soft protective pouch

Product Downloads
