C-IC6LP-W 6.5

Price:: RRP: £290.40 inc VAT
Code:: BIACIC6LPW
Manufacturer Code:: 910.0298.900
Brand:: Biamp

Main Features

High intelligibility with exceptional uniform coverage
Coaxial, acoustically-aligned, wide dispersion soft dome tweeter with waveguide
Integrates with the Tesira AMP-450BP
Attractive edgeless magnetic grille design
Conduit knock-outs on the input cover meet Chicago plenum air space requirements
Available in standard white or black finish

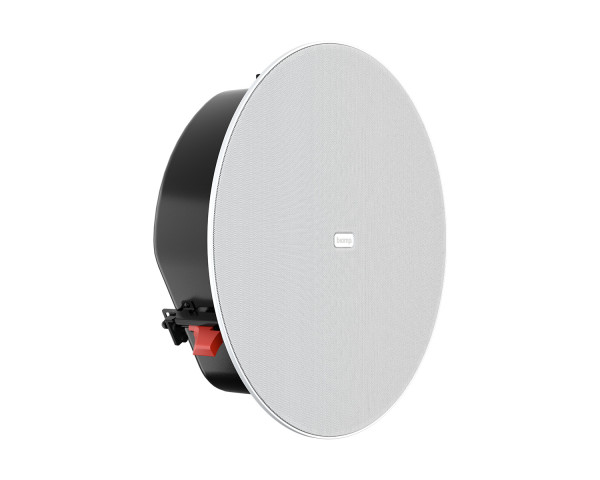

C-IC6LP-W 6.5" 2-Way Coaxial Low-Profile Ceiling Speaker 100V Wht

The powerful and versatile Desono C-IC6LP provides an ideal choice for any conferencing space that demands superior speech reproduction in narrow depth ceilings. Only 3.9" (100 mm) in depth, the C-IC6LP solves space problems that competing products cannot. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

Featuring a genuine coaxial, acoustically-aligned driver set with separate magnets for the LF and HF drivers that minimize distortion. Additionally, the integrated HF waveguide provides the widest and most consistent coverage in it's class, ensuring all listeners are in the "sweet spot".

The C-IC6LP also directly integrates with the Tesira AMP-450BP — a four-channel “backpack” PoE+ amplifier — which reduces wiring requirements and installation time.

The Desono C-IC6LP loudspeakers are an ideal choice for any conferencing space that demands superior speech reproduction

Product Features

High intelligibility with exceptional uniform coverage
Coaxial, acoustically-aligned, wide dispersion soft dome tweeter with waveguide
Integrates with the Tesira AMP-450BP
Attractive edgeless magnetic grille design
Conduit knock-outs on the input cover meet Chicago plenum air space requirements
Available in standard white or black finish
Black

Product Specifications

Operating mode: Passive with DSP
Operating environment: Indoor
Operating range (-10dB)²: 63Hz to 20 kHz
Nominal Beamwidth (H X V): 145°, conical
Transducers: LF 1 x 6.5" (165mm) treated paper cone | HF 1 x 1.0" (25mm) treated soft dome driver with waveguide
Sensitivity: 87 dB(2.83 v) | 87 dB (1 W at rated impedance 8 ohms)
Nominal continuous power handling: Passive | 22 V (60 W @ 8 ohms)
Nominal Maximum SPL: Passive | Peak: 109dB | Continuous: 103dB
Rated continuous voltage: Passive | 21.9 V (27 dBV)
Rated maximum SPL (processed): Passive | Peak: 115dB | Continuous: 103dB
Recommended amplifiers: Passive | 60 W - 120 W into 8 Ohms (22 V - 31 V)
Crossover frequency: 2.5 kHz
Required Accessory: 65 Hz, 18 dB/oct. high pass filter; DSP preset for ALC or Tesira

Physical

Input connection: 4-position Euroblock connector, 2 RJ45 ports
Controls: None
Mounting provisions: 3 SpringLock mounting clamps with 33mm (1.3") grip range
Certifications: ETL listed to comply with UL1480A, UL2043 and CSA62368-1 suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions W x D: 341mm x 101mm (13.41" x 3.96")
Weight: 4.12kg (9.1lbs)
Finish: Refer to data sheet page 3
Accessories (included): C-ring supporting plate, tile support bridge rails, grilles, paint masks, cut-out template, wire strain-relief fittings
Model: C-IC6LP-B - loudspeaker with White grille
